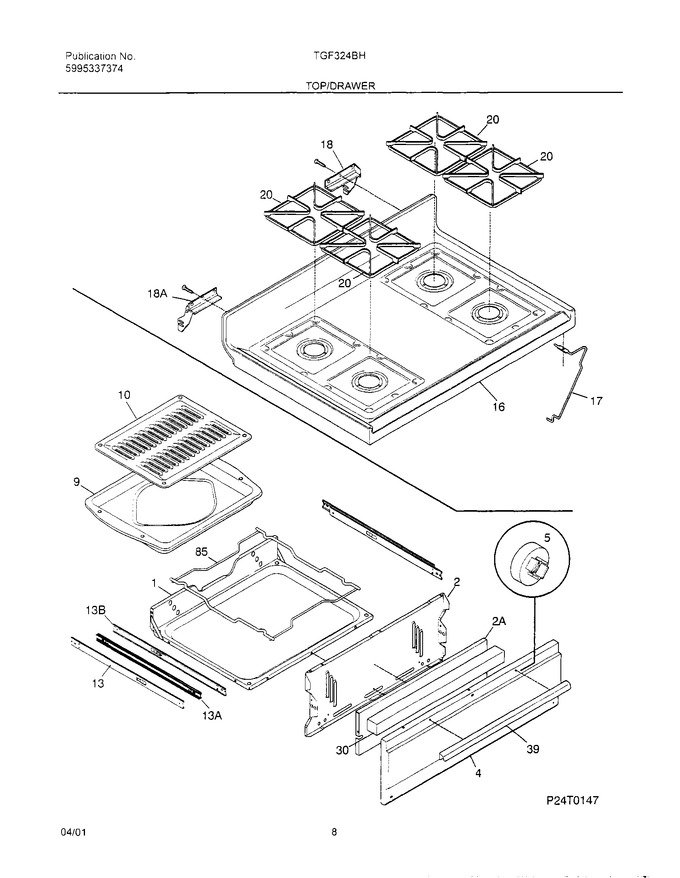

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316110201		Carriage, Broiler				$ 232.57
2	316110101		Liner-low Broil		Appelez-nous	-
4	316056205		Panel-drawer-white		Appelez-nous	-
5	316129100		Nut-nylon Push In		Appelez-nous	-
5	3131387		Fastener, Spacer		Appelez-nous	-
9	316073800		Pan-broiler		Appelez-nous	-
10	3205234		Insert-broiler		Appelez-nous	-
13	316111502		Glide-low Broil, Inner		Appelez-nous	-
16	5303285552		Main Top, White		Appelez-nous	-
17	316057601		Rod-maintop Support				$ 64.49
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
30	316111400		Insulation,broiler Drawer		Appelez-nous	-
39	3201268		Handle		Appelez-nous	-
85	316115600		Rack-low Broil				$ 105.47
13A	316111600		Glide-drawer,inner		Appelez-nous	-
13B	316111501		Glide-low Broil,outer		Appelez-nous	-
18A	5303273063		Hinge-main Top (lh)				$ 48.41
2A	316110800		Shield,broiler		Appelez-nous	-
F20	316088900		Grate, Black, (4)		Appelez-nous	-
NI	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16				$ 6.62
NI	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021120		Screw, 8-18 X 5/8 ,shoulder Sqdr				$ 13.28
NI	316021109		Screw-drawer Pnl   (Replaces: 316021112)			Immediately	$ 27.50
NI	316519700		Screw, Cup Pt, 8-18 X 3/8   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
