SELECT A DIAGRAM

01 - Cover


02 - Backguard


04 - Burner


06 - Body


08 - Top/drawer

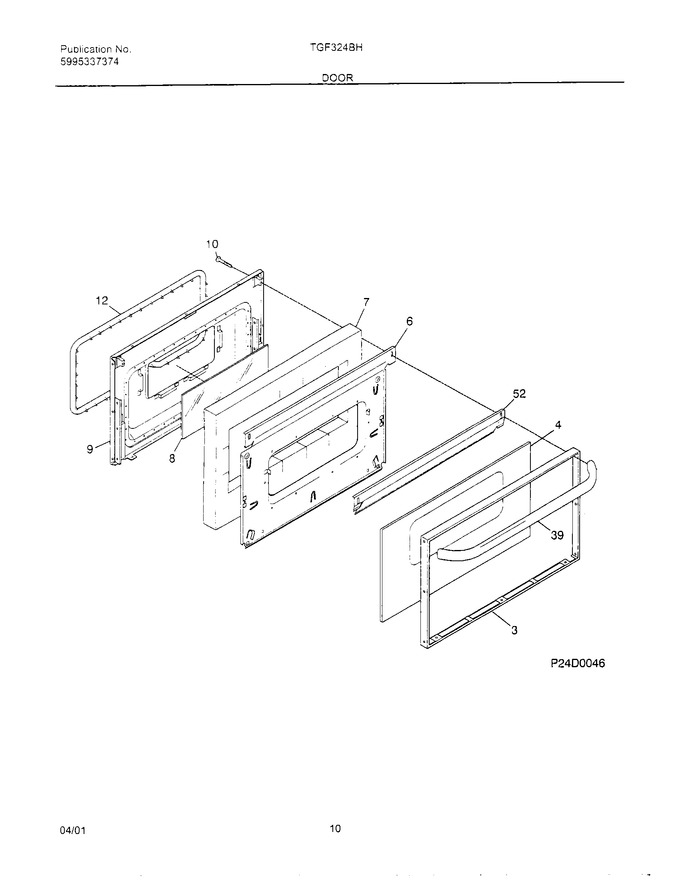

10 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316067802		Trim-oven Door		Appelez-nous	-
4	316089000		Glass-oven Door, Outer		Appelez-nous	-
6	316088403		Shield-wool		Appelez-nous	-
7	316439802		Insulation,oven Door   (Replaces: 316076401)			Immediately	$ 192.78
8	316088600		Glass,oven Door ,inner				$ 85.52
9	316066610		Liner-oven Door		Appelez-nous	-
10	5303280308		Screw-handle (2)				$ 16.96
10	316008401		Washer,3/4 X 1/4 ,steel				$ 11.34
12	5303202011		Seal, Door				$ 166.84
39	5304529996		Handle-door,oven   (Replaces: 316091114)				$ 156.11
52	316081303		Shield-oven Door, Black, Top		Appelez-nous	-
NI	316021109		Screw			Immediately	$ 27.50
NI	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5303271648		Screw, Water Hd Sq Dr, 8-18(ab) X 1/2			Immediately	$ 13.46
NI	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16				$ 6.62

    View Diagram in Separate Window       Print Part List
