SELECT A DIAGRAM

01 - Cover


02 - Backguard

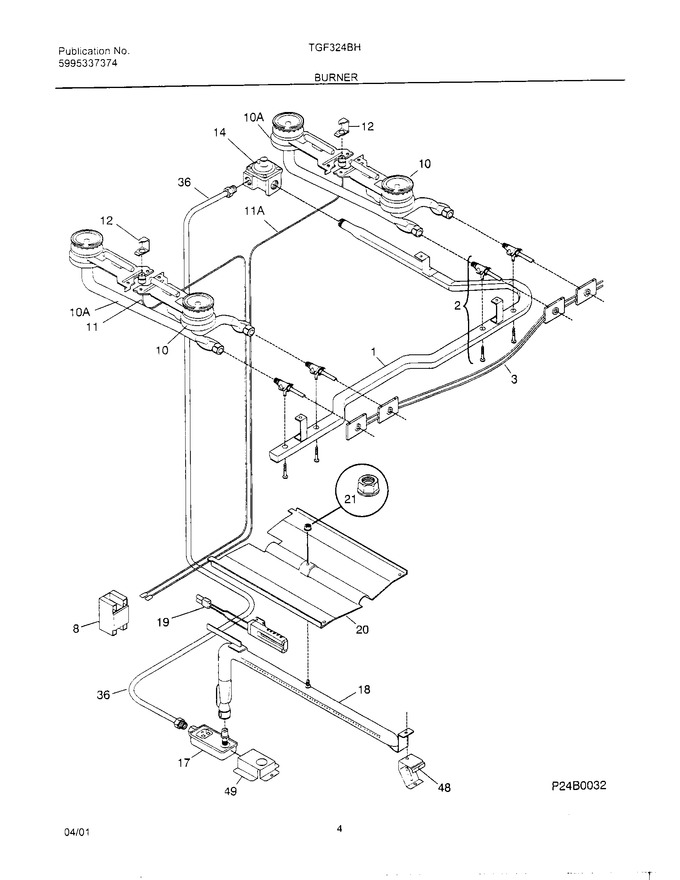

04 - Burner


06 - Body


08 - Top/drawer


10 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316113500		Manifold-pipe				$ 93.50
2	316048200		Screw-top Valve Mtg, Hex Washer Head, 1/4-20 X 0.31, (4)		Appelez-nous	-
3	316103601		Switch-ignitor, (4)		Appelez-nous	-
8	5303912606		Spark Module				$ 134.67
12	3016993		Retainer-igniter		Appelez-nous	-
14	316021104		Screw-regulator/brkt, Hex, 8-18 X 3/8, Nick, 3 (non-illustrated)				$ 7.79
20	3203265		Baffle,oven Burner		Appelez-nous	-
21	154079601		Nut   (Replaces: 5303013272)				$ 0.41
36	316083000		Tubing, 3/8, Alum				$ 121.49
48	3018603		Bracket,support ,oven Burner		Appelez-nous	-
49	3131438		Bracket, Safety Valve		Appelez-nous	-
F10	5304506427		Burner-top, Front   (Replaces: 316039002)				$ 101.63
F10A	5304506426		Burner-top, Rear   (Replaces: 316039003)				$ 100.05
F11	5303289336		Igniter-top Burner, Base, 33``		Appelez-nous	-
F11A	316081701		Ignitor-top Burner, 50``				$ 62.69
F14	316082900		Regulator, Pressure				$ 563.58
F17	3203459		Valve-safety				$ 303.64
F18	316114300		Burner,oven				$ 169.88
F19	5303935066		Igniter-oven			Immediately	$ 59.58
F2	316098600		Valve-top Burner, 2-position, (4)		Appelez-nous	-
NI	5303271648		Screw, Water Hd Sq Dr, 8-18(ab) X 1/2			Immediately	$ 13.46

    View Diagram in Separate Window       Print Part List
