SELECT A DIAGRAM

01 - Cover


02 - Backguard


04 - Burner

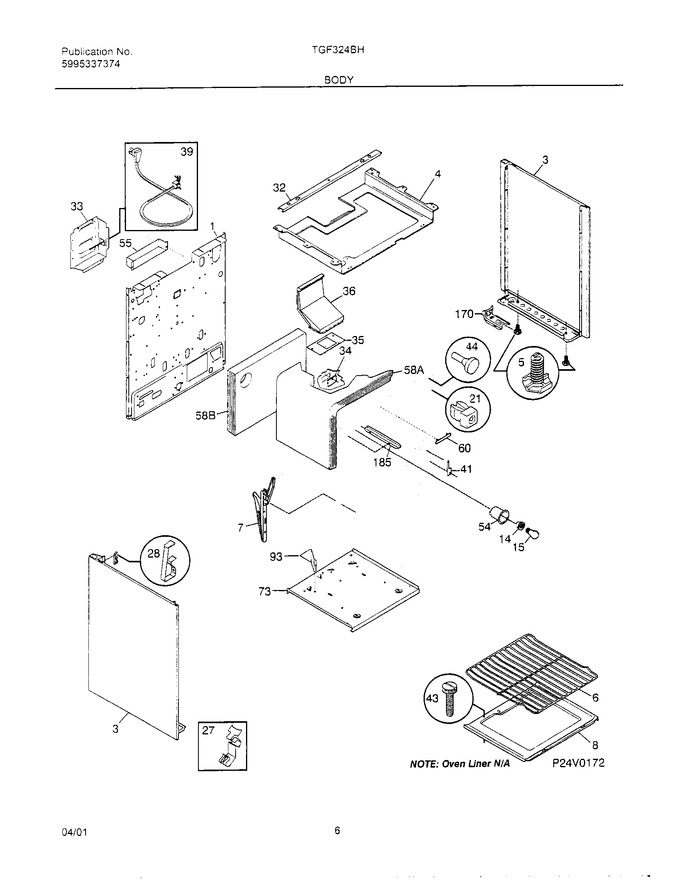

06 - Body


08 - Top/drawer


10 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316029412		Back-main		Appelez-nous	-
3	316081034		Panel-bodyside,white ,rh		Appelez-nous	-
3	316081035		Panel-bodyside,white ,lh		Appelez-nous	-
4	316067206		Burner Box		Appelez-nous	-
5	316107300		Screw-leveling		Appelez-nous	-
6	316067902		Rack,oven			Immediately	$ 103.10
7	316007001		Channel-door Hinge				$ 234.55
8	316064600		Support,oven Bottom				$ 18.95
8	5303212540		Bottom, Oven		Appelez-nous	-
14	316116400		Socket-light			Immediately	$ 56.10
15	40A15		Light Bulb   (Replaces: 5303013071)			Immediately	$ 1.98
21	3014099		Spacer,bodyside				$ 3.62
27	5303284616		Clip-thermo Bulb				$ 9.86
28	3011813		Clif-wire				$ 14.79
32	5303289684		Fastener,tanden Wire ,(2)		Appelez-nous	-
32	3203441		Channel Burner		Appelez-nous	-
33	316055601		Shield-spark Module		Appelez-nous	-
34	3018607		Cover Plate				$ 10.50
35	316542102		Gasket,flue   (Replaces: 316116600)				$ 12.13
36	5303273108		Flue		Appelez-nous	-
39	5304534377		Cord-electric Power   (Replaces: 3202006)				$ 26.85
41	3131570		Cover Hinge Cutout				$ 7.35
43	316282700		Screw-oven Bottom, 8-18 X 1-7/16   (Replaces: 3131732)				$ 9.93
54	5303271606		Housing,oven Light		Appelez-nous	-
55	5303289358		Shield,flue		Appelez-nous	-
60	5303015372		Cover-oven Front		Appelez-nous	-
73	316109902		Base,low Broil				$ 131.25
93	316110000		Shield,ignitor ,metal		Appelez-nous	-
170	316112005		Anti-tip Bracket   (Replaces: 316107200)			Immediately	$ 18.91
170	316116000		Screw-anti Tip, 1.75`` Concrete				$ 12.89
170	316112500		Template, Anti-tip Bracket				$ 3.55
170	316112005		Kit-anti-tip Bracket (complete W/template & Screw)   (Replaces: 5303935180)			Immediately	$ 18.91
185	316112900		Shield,thermo Bulb		Appelez-nous	-
58A	3017142		Insulation, Oven Wrapper				$ 193.50
58B	3203541		Insulation, Oven Back		Appelez-nous	-
NI	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16				$ 6.62
NI	316001226		Harness-main		Appelez-nous	-
NI	316021123		Screw,8-18 X 3/8-8 ,truss Hd Black		Appelez-nous	-
NI	5303271648		Screw, Water Hd Sq Dr, 8-18(ab) X 1/2			Immediately	$ 13.46
NI	316519700		Screw, Cup Pt, 8-18 X 3/8   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
