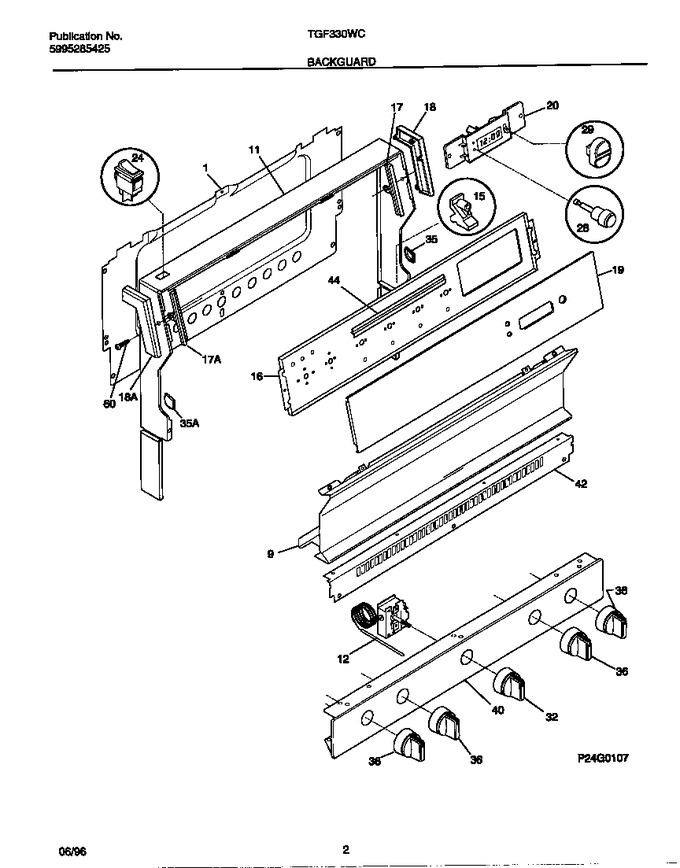

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131123		Shield-backguard,rear Wall		Appelez-nous	-
9	316043502		Trim, Splasher, Almond		Appelez-nous	-
11	3204755		Trim, Wrapper		Appelez-nous	-
12	316032411		Thermostat-oven   (Replaces: 5303271464)			Immediately	$ 165.14
15	5303131237		Support-backguard,(2)		Appelez-nous	-
17	3204753		Trim-glass Retainer,lh		Appelez-nous	-
17	3204754		Trim-glass Retainer,rh		Appelez-nous	-
18	5303272307		End Cap,black ,lh		Appelez-nous	-
18	5303272308		End Cap,black ,rh		Appelez-nous	-
19	316034554		Panel-control		Appelez-nous	-
20	316096000CP		Clock/timer   (Replaces: 316096000)		Appelez-nous	-
24	5304527841		Switch-light/lamp, Rocker Type, Black   (Replaces: 316005602)			Immediately	$ 11.38
28	5303272306		Push Button, Clock Set, Black		Appelez-nous	-
29	5303272305		Button-selector, Clock/timer, Black				$ 38.80
32	316022915		Knob-thermostat		Appelez-nous	-
35	3203076		End Cap,lh		Appelez-nous	-
35	3203077		End Cap,rh		Appelez-nous	-
36	316023023		Knob-control, (4)		Appelez-nous	-
40	316086807		Panel-manifold		Appelez-nous	-
42	316084300		Trim-vent		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
60	5303289970		Screw-end Cap Mtg,oval Head ,6-20ab X 1/2		Appelez-nous	-
*92360	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*92361	316519700		Screw, Cup Pt, 8-18 X 3/8   (Replaces: 316021108)				$ 10.02
16A	316042601		Plate,instrument Mtg		Appelez-nous	-
16B	316042610		Plate, Instrument Mtg		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
