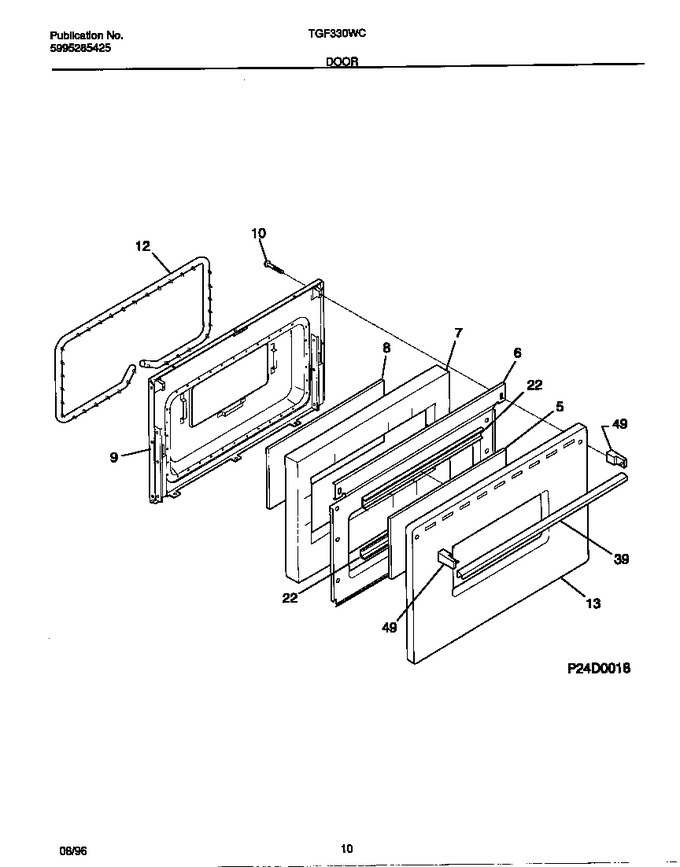

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	3051149		Glass, Oven Door, Front		Appelez-nous	-
6	316088403		Shield-wool		Appelez-nous	-
7	316439802		Insulation,oven Door   (Replaces: 316076401)			Immediately	$ 192.78
8	316088600		Glass,oven Door ,inner				$ 85.52
9	316066610		Liner-oven Door		Appelez-nous	-
10	5303281378		Screw-handle Mtg, Wafer Head, 10-24(f) X 3				$ 13.60
12	5303202011		Seal-oven Door, Non Self-clean				$ 166.84
13	3017096		Panel, Oven Door, Almond		Appelez-nous	-
22	5303272476		Retainer,glass ,(2) ,angle		Appelez-nous	-
39	5303273127		Handle-door, Black, Oven		Appelez-nous	-
49	3016755		End Cap, Black, (2)		Appelez-nous	-
*92368	5303212671		Screw, Cr Pan Hd Sems, 8-32bp X 1.00		Appelez-nous	-
*92369	5303271648		Screw, Wafer Hd Sq Dr, 8-18(ab) X 1/2			Immediately	$ 13.46
*92370	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16				$ 6.62
*92371	5303285179		Screw-oven Door, Wafer Head, 8-32(t) X 1/2				$ 13.46
*92372	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
