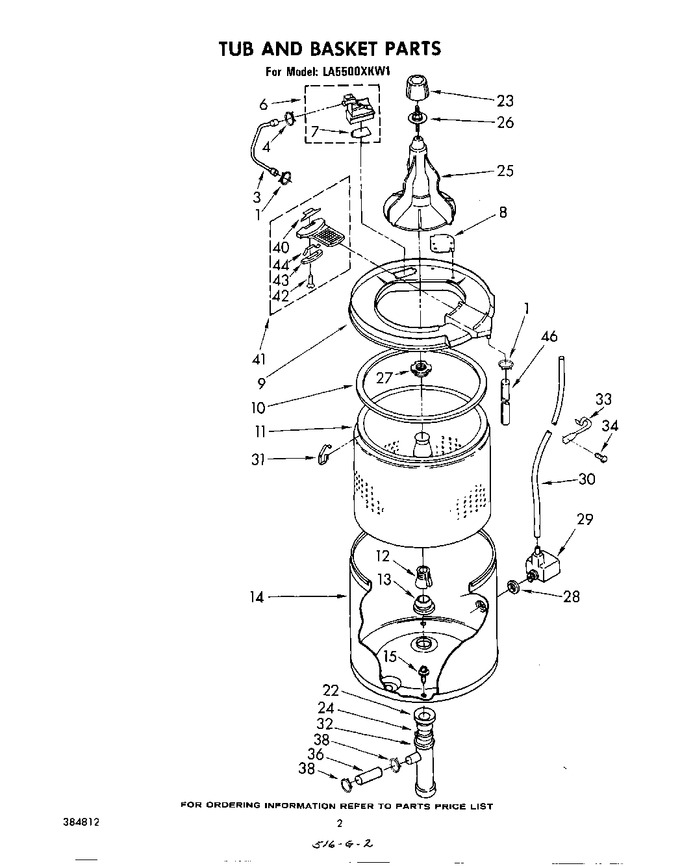

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP596669 | Clamp, Hose (Replaces: 272846) |
|
Immediately | $ 7.56 | ||||
| 3 | 356349 | Hose, Water Inlet |
|
- | |||||
| 4 | WP596669 | Clamp, Hose (Replaces: 272847) |
|
Immediately | $ 7.56 | ||||
| 6 | 366072 | Inlet, Water |
|
- | |||||
| 7 | 355584 | Flapper |
|
- | |||||
| 8 | 355852 | Plate, Snubber |
|
- | |||||
| 9 | 381978 | Ring & Filter, Tub (includes Illus. 8 & 41) |
|
- | |||||
| 10 | 383553 | Seal, Tub Ring |
|
- | |||||
| 11 | 383960 | Basket |
|
- | |||||
| 12 | 96384 | Block, Drive |
|
$ 32.89 | |||||
| 13 | W10814296 | Gasket, Centerpost (Replaces: 96690) |
|
Immediately | $ 8.26 | ||||
| 14 | 384123 | Tub |
|
- | |||||
| 15 | WP358237 | Screw & Washer, Tub (4) (Replaces: 370571) |
|
Immediately | $ 7.97 | ||||
| 22 | 93553 | Hose, Tub Outlet |
|
- | |||||
| 23 | 358431 | Cap, Agitator |
|
- | |||||
| 24 | 9421321 | Clip, Hose |
|
- | |||||
| 25 | 363633 | Agitator & Insert Assembly |
|
$ 68.97 | |||||
| 26 | 358440 | Stud, Agitator Shaft |
|
- | |||||
| 27 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 8.00 | ||||
| 28 | 351830 | Seal |
|
$ 5.84 | |||||
| 29 | 360804 | Air Dome Assembly |
|
- | |||||
| 30 | WP353244 | Hose, Pressure Switch (Replaces: 353405) |
|
Immediately | $ 53.94 | ||||
| 31 | 359763 | Clip, Tub Ring (4) |
|
- | |||||
| 32 | 84091 | Manifold |
|
- | |||||
| 33 | 358339 | Bracket, Hose |
|
- | |||||
| 34 | WP273556 | Screw, 10-16 X 5/8 (Replaces: 357640) |
|
Immediately | $ 7.04 | ||||
| 36 | DE81-06162A | Hose (Replaces: 92231) |
|
$ 78.75 | |||||
| 38 | WP285655 | Clamp, Hose (Replaces: 272858) |
|
Immediately | $ 7.55 | ||||
| 40 | 357249 | Latch |
|
- | |||||
| 41 | 359785 | Filter |
|
- | |||||
| 42 | 176360 | Screw (2) |
|
- | |||||
| 43 | 357250 | Retainer |
|
- | |||||
| 44 | 94403 | Spring |
|
- | |||||
| 46 | 357346 | Hose, Pump To Filter |
|
- |
