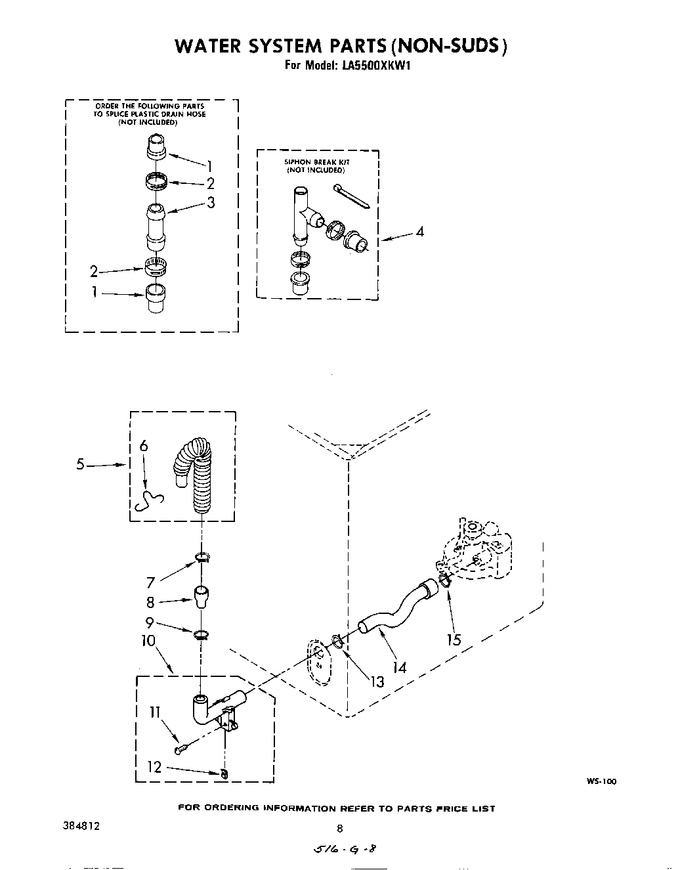

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	285321		Sleeve Kit, Plastic Drain Hose (contains 2 Sleeves)				$ 75.52
2	WP285655		Clamp, Hose (2)   (Replaces: 65349)			Immediately	$ 7.55
3	WP16272		Connector Straight   (Replaces: 16272)				$ 7.04
4	76660		Siphon Break Kit (not Included)   (Replaces: 285320)			Immediately	$ 119.93
5	285664		Hose, Corrugated Plastic Drain (5-1/2 Ft.)   (Replaces: 384688)			Immediately	$ 33.20
5	285666		Hose, Corrugated Plastic Drain (10 Ft.) (not Included)   (Replaces: 384498)			Immediately	$ 56.11
6	357247		Retainer, Drain Hose		Appelez-nous	-
7	WP616099		Clamp, Hose   (Replaces: 371504)			Immediately	$ 7.03
8	WP384496		Coupling, Hose   (Replaces: 384496)				$ 77.48
9	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
10	358805		Connector, 90~		Appelez-nous	-
11	90876		Screw, Connector Mounting (10 X 3/4)		Appelez-nous	-
12	351395		Clip		Appelez-nous	-
13	WP356138		Clamp, Hose   (Replaces: 353095)			Immediately	$ 7.67
14	21114		Hose, Pump To 90~ Connector		Appelez-nous	-
15	WP285655		Clamp, Hose   (Replaces: 272858)			Immediately	$ 7.55
