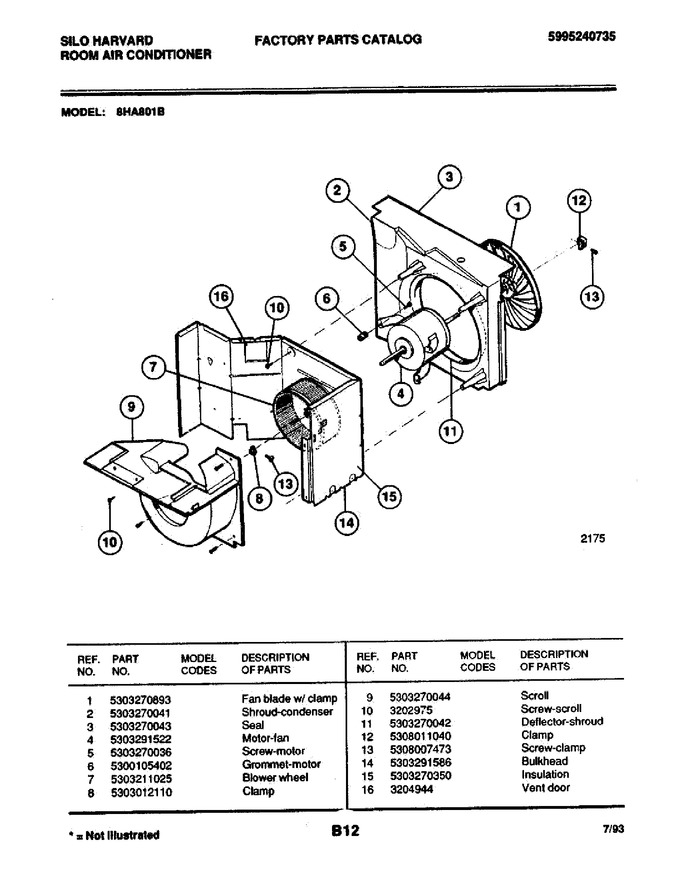

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303270893 | Fan Blade, With Clamp |
|
$ 132.46 | |||||
| 2 | 5303270041 | Shroud Condenser |
|
- | |||||
| 3 | 5303270043 | Seal |
|
- | |||||
| 4 | 5303291522 | Motor Fan |
|
- | |||||
| 5 | 5303270036 | Screw-motor |
|
- | |||||
| 6 | 5300105402 | Grommet Motor |
|
- | |||||
| 7 | 5303211025 | Blower Wheel |
|
- | |||||
| 8 | 5303012110 | Clamp |
|
$ 8.14 | |||||
| 9 | 5303270044 | Scroll |
|
- | |||||
| 10 | 3202975 | Screw |
|
- | |||||
| 11 | 5303270042 | Deflector-shroud |
|
- | |||||
| 12 | 5308011040 | Clamp |
|
- | |||||
| 13 | 5308007473 | Screw-clamp |
|
- | |||||
| 14 | 5303291586 | Bulkhead |
|
- | |||||
| 15 | 5303270350 | Insulation |
|
- | |||||
| 16 | 3204944 | Vent Door |
|
- |
