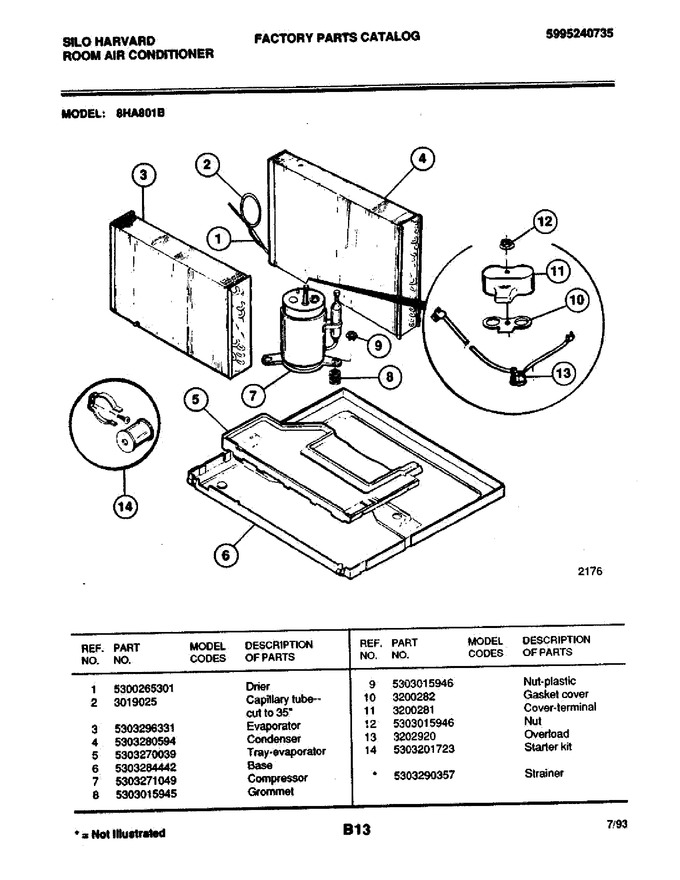

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300265301 | Drier |
|
$ 284.30 | |||||
| 2 | 3019025 | Capillary Tube |
|
- | |||||
| 3 | 5303296331 | Evaporator |
|
- | |||||
| 4 | 5303280594 | Condenser |
|
- | |||||
| 5 | 5303270039 | Tray Evap |
|
- | |||||
| 6 | 5303284442 | Base |
|
- | |||||
| 7 | 5303271049 | Compressor |
|
- | |||||
| 8 | 5303015945 | Grommet |
|
- | |||||
| 9 | 5303015946 | Nut (plastic) |
|
- | |||||
| 10 | 3200282 | Gasket-cover |
|
- | |||||
| 11 | 3200281 | Cover-terminal |
|
- | |||||
| 12 | 5303015946 | Nut |
|
- | |||||
| 13 | 3202920 | Overload |
|
- | |||||
| 14 | 5303201723 | Starter Kit |
|
- | |||||
| 5303290357 | Strainer |
|
- |
