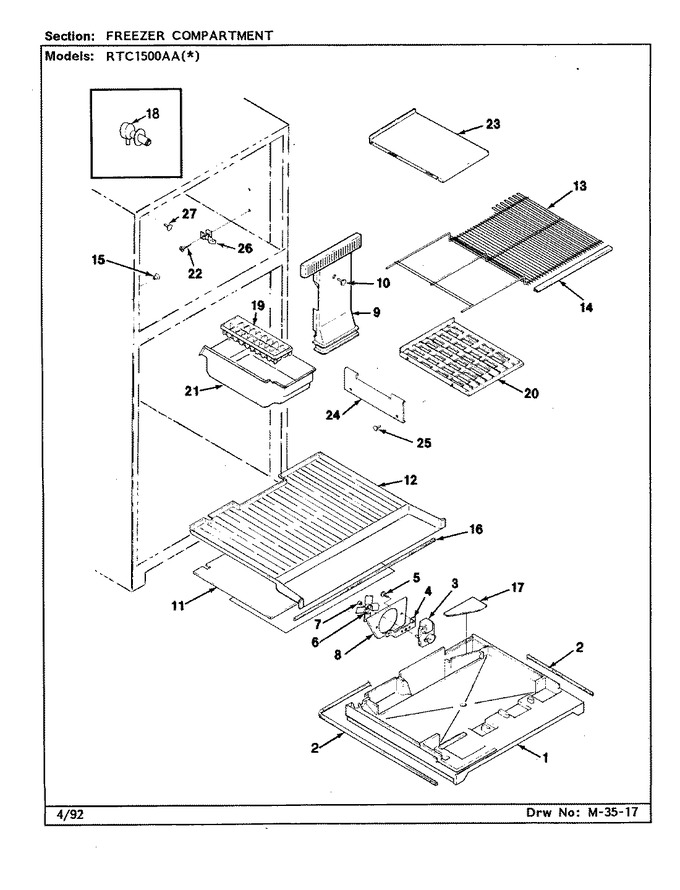

01 - Freezer Compartment
02 - Fresh Food Compartment
03 - Inner Door
04 - Optional Ice Maker Kit
05 - Outer Door
06 - Shelves & Accessories
07 - Unit Compartment & System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 69123-1 | Divider, Mullion |
|
- | |||||
| 2 | 68866-5 | Seal 72`` |
|
- | |||||
| 3 | 406062-1 | Screw |
|
- | |||||
| 3 | WP61004888 | Motor, Evaporator Fan (Replaces: 54482-10) |
|
Immediately | $ 104.99 | ||||
| 4 | 64856-1 | Bracket, Fan Motor |
|
- | |||||
| 5 | 400015-12 | Screw |
|
- | |||||
| 6 | 64359-1 | Blade, Evaporator Fan |
|
- | |||||
| 7 | 420092-900 | Washer, Spring |
|
- | |||||
| 8 | 60608-2 | Orifice, Fan Blade |
|
- | |||||
| 9 | 66325-29 | Seal, Tunnel |
|
- | |||||
| 9 | 67115-1 | Tunnel, Air (frz) |
|
- | |||||
| 10 | W11233072 | Screw (Replaces: 400015-31) |
|
Immediately | $ 12.62 | ||||
| 11 | 66403-1 | Cover, Evaporator |
|
- | |||||
| 12 | 66460-1 | Bottom, Frz. |
|
- | |||||
| 13 | 67348-3 | Shelf, Frz. (wire) |
|
- | |||||
| 14 | 67176-5 | Trim, Shelf |
|
- | |||||
| 15 | 60313-1 | Cup, Shelf |
|
- | |||||
| 16 | 68946-1 | Seal |
|
- | |||||
| 17 | 66480-4 | Cover, Plenum |
|
- | |||||
| 18 | 67855-1 | Plug, Grommet |
|
- | |||||
| 18 | 67294-1 | Grommet Water |
|
- | |||||
| 19 | WP841180A | Tray, Ice (Replaces: 59281-5) |
|
Immediately | $ 41.00 | ||||
| 20 | 67114-1 | Shelf, Ice Tray |
|
- | |||||
| 21 | 67141-1 | Pan, Ice |
|
- | |||||
| 22 | 400019-1 | Screw |
|
- | |||||
| 23 | 67349-1 | Shelf, Fill-in |
|
- | |||||
| 24 | 67147-1 | Side, Ice Tray Shelf |
|
- | |||||
| 25 | 67150-1 | Fastener, Divider |
|
- | |||||
| 26 | 66101-1 | Stud, Shelf |
|
- | |||||
| 27 | 66920-1 | Plug Button |
|
- | |||||
| 27 | 67557-1 | Plug Button |
|
- | |||||
| 27 | 68187-1 | Cap, Connector |
|
- |
