View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Freezer Compartment
02 - Fresh Food Compartment

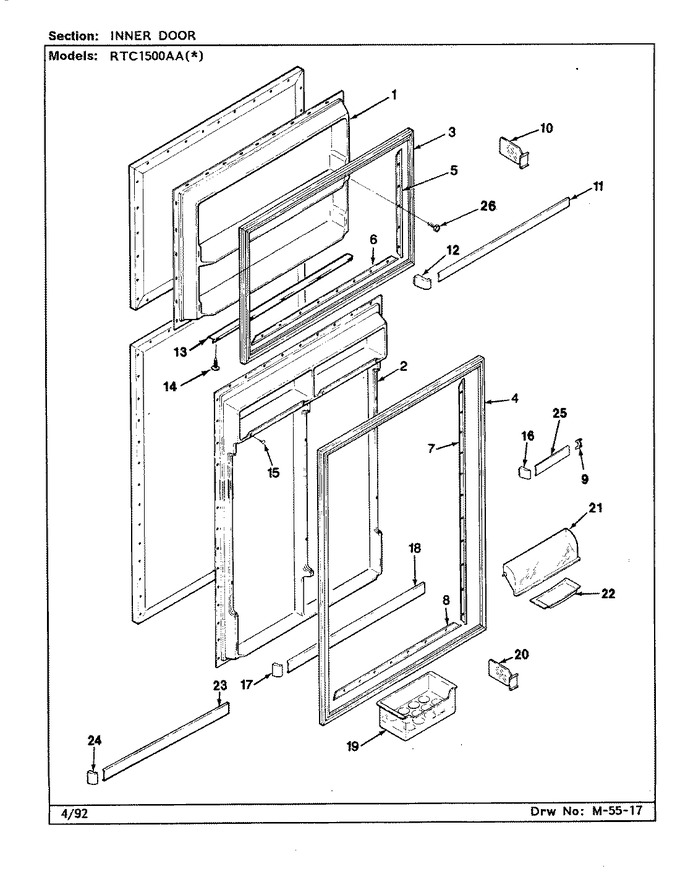

03 - Inner Door
04 - Optional Ice Maker Kit
05 - Outer Door
06 - Shelves & Accessories
07 - Unit Compartment & System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67001-2 | Liner. Frz. Door | - |
|
- | ||||
| 2 | 67002-1 | Liner, F.f. Door | - |
|
- | ||||
| 3 | 67744-1 | Gasket | - |
|
- | ||||
| 4 | 67744-2 | Gasket | - |
|
- | ||||
| 5 | 67033-2 | Retainer, Door Seal | - |
|
- | ||||
| 6 | 67033-1 | Retainer, Door Seal | - |
|
- | ||||
| 7 | 67033-3 | Retainer, Door Seal | - |
|
- | ||||
| 8 | 67033-1 | Retainer, Door Seal | - |
|
- | ||||
| 9 | WP65245-1 | Retainer, Shelf Trim (Replaces: 65245-1) | - |
|
$ 9.39 | ||||
| 10 | 67195-3 | Organizer Pkg | - |
|
- | ||||
| 11 | 67718-5 | Trim, Door Shelf | - |
|
- | ||||
| 12 | 67213-1 | Endcap, Shelf Trim (sand Beige | - |
|
$ 9.86 | ||||
| 13 | 68930-1 | Seal, Secondary | - |
|
- | ||||
| 14 | 56686-5 | Clip, Secondary Seal | - |
|
- | ||||
| 15 | 28272-6 | Bumper, Door | - |
|
- | ||||
| 16 | 67210-1 | Endcap, Shelf Trim | - |
|
- | ||||
| 17 | 67211-1 | Endcap, Shelf Trim | - |
|
$ 11.45 | ||||
| 18 | 67718-16 | Trim, Door Shelf | - |
|
- | ||||
| 19 | 67215-1 | Tray, Egg | - |
|
- | ||||
| 20 | 67195-1 | Organizer | - |
|
- | ||||
| 21 | 67041-1 | Door, Dairy | - |
|
- | ||||
| 22 | 67216-1 | Tray, Butter | - |
|
- | ||||
| 23 | 67718-11 | Trim, Door Shelf | - |
|
- | ||||
| 24 | 67208-1 | Endcap, Shelf Trim | - |
|
$ 11.62 | ||||
| 25 | 67718-1 | Trim, Door Shelf | - |
|
- | ||||
| 26 | 65275-5 | Screw | - |
|
- |
