SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

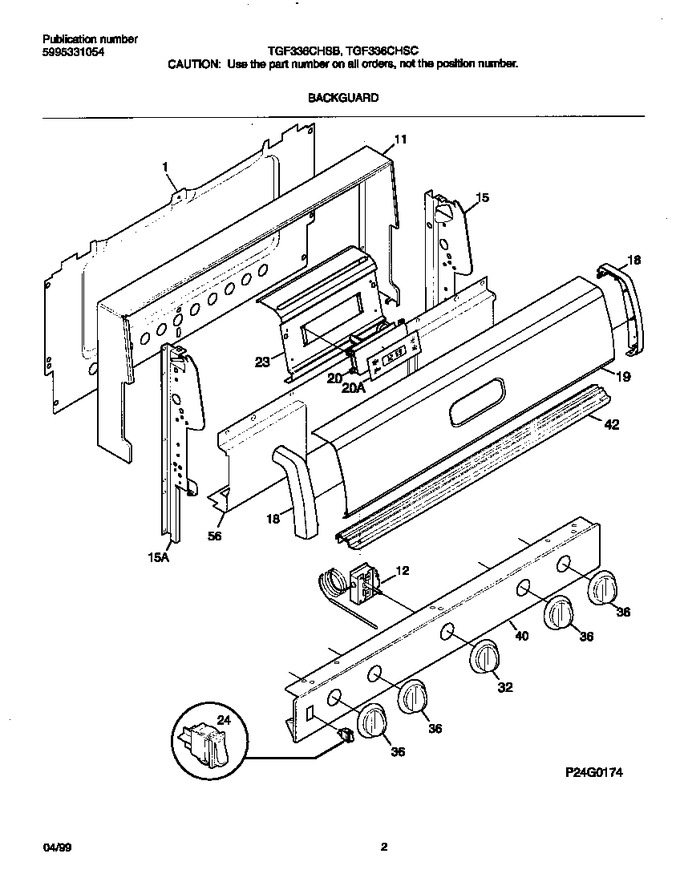

1	5303288505		655f Shield-rear Wall B/g,1		Appelez-nous	-
11	316061857		Trim-wrapper,textured ,white		Appelez-nous	-
12	316032411		Thermostat   (Replaces: 316032404)			Immediately	$ 165.14
15	316023108		Support-backguard, Rh		Appelez-nous	-
15	316023109		Support,backguard ,lh		Appelez-nous	-
18	316115210		End Cap,rh		Appelez-nous	-
18	316115211		End Cap,lh		Appelez-nous	-
19	316115005		Panel-control,metal		Appelez-nous	-
20	316116200		Clock-timer		Appelez-nous	-
23	316131500		Bracket-timer Tod,23		Appelez-nous	-
24	5304527842		Switch-rocker, Oven Light ,white   (Replaces: 316118101)			Immediately	$ 16.13
32	316109509		Knob-thermostat,white		Appelez-nous	-
36	316109503		Knob-top Valve,white		Appelez-nous	-
40	316086860		Panel-manifold		Appelez-nous	-
42	316055203		Trim-extrusion		Appelez-nous	-
56	316074907		Deflector-flue, Black		Appelez-nous	-
*25720	3131438		Bracket, Safety Valve		Appelez-nous	-
*25721	316002172		Diagram-wiring		Appelez-nous	-
*25722	316021109		Screw,hex ,8-18 X 0.375 ,back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*25723	316519700		Screw,cup Pt ,8-18 X 0.375 ,hinge ,ind Lght Brkt,manifol   (Replaces: 316021108)				$ 10.02
*25724	316021109		Screw,semi Gim ,8-18 X 1/2 ,black   (Replaces: 316021110)			Immediately	$ 27.50
*25725	316021122		Screw,8-18 X 0.375 ,truss Hd White		Appelez-nous	-
*25726	316105822		Installation Instr		Appelez-nous	-
*25727	316112500		Template, Anti-tip Bracket				$ 3.55
*25728	316115300		Overlay-clock		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
