SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body

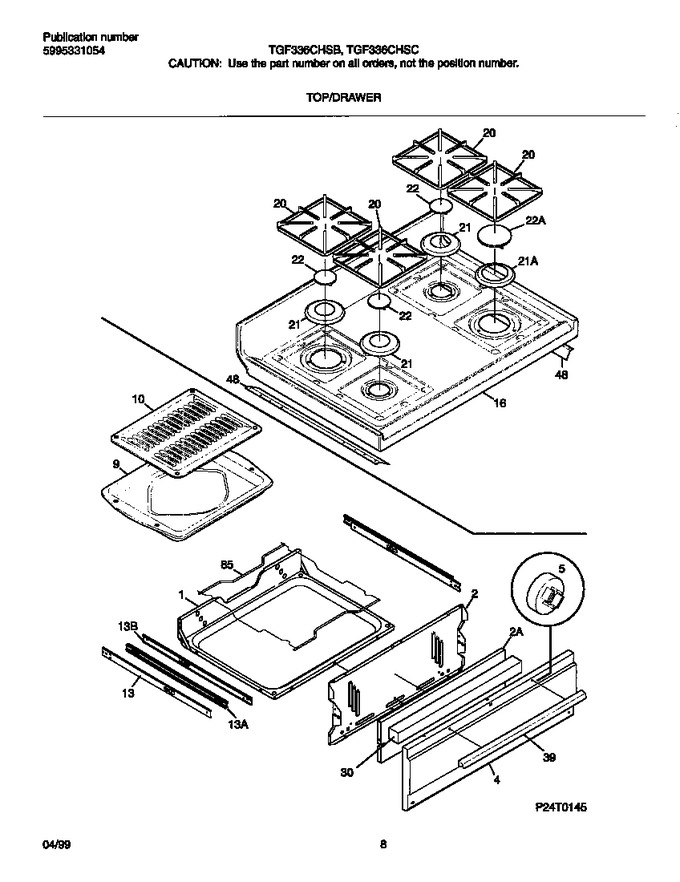

05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316110201		Carriage, Broiler				$ 232.57
2	316110101		Liner-low Broil		Appelez-nous	-
2	316110800		Shield,broiler		Appelez-nous	-
4	316056205		Panel-drawer-white		Appelez-nous	-
9	316073800		Pan-broiler		Appelez-nous	-
13	316111501		Glide-low Broil,outer		Appelez-nous	-
13	316111502		Glide-low Broil, Inner		Appelez-nous	-
13	316111600		Glide-drawer,inner		Appelez-nous	-
16	316114801		Maintop, Almond		Appelez-nous	-
20	316085205		Grate, Gray, (4)		Appelez-nous	-
21	316011307		Trim-ring, Gray , Large		Appelez-nous	-
21	316011308		Trim Ring, Gray , Small		Appelez-nous	-
22	316010905		Cap,burner ,gloss Gray ,(4)				$ 56.91
22	316111701		Cap-burner, Gray , Large				$ 13.44
30	316111400		Insulation,broiler Drawer		Appelez-nous	-
39	316019505		Handle-drawer, White				$ 82.27
48	316077401		Shield-maintop,(2)		Appelez-nous	-
85	316115600		Rack-low Broil				$ 105.47
*25740	316021109		Screw,hex ,8-18 X 0.375 ,back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*25741	316519700		Screw,cup Pt ,8-18 X 0.375 ,hinge ,ind Lght Brkt,manifol   (Replaces: 316021108)				$ 10.02
*25742	316021109		Screw,semi Gim ,8-18 X 1/2 ,black   (Replaces: 316021110)			Immediately	$ 27.50
*25743	316021109		Screw-8-18 X 1/2 Tr Sqd White   (Replaces: 316021112)			Immediately	$ 27.50
*25744	316021120		Screw, 8-18 X 5/8 ,shoulder Sqdr				$ 13.28
*25745	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
10A	3205234		Insert, Broiler Pan		Appelez-nous	-
10B	5303280308		Screw-handle Mtg, Wafer Head, 10-24(t) X 2				$ 16.96

    View Diagram in Separate Window       Print Part List
