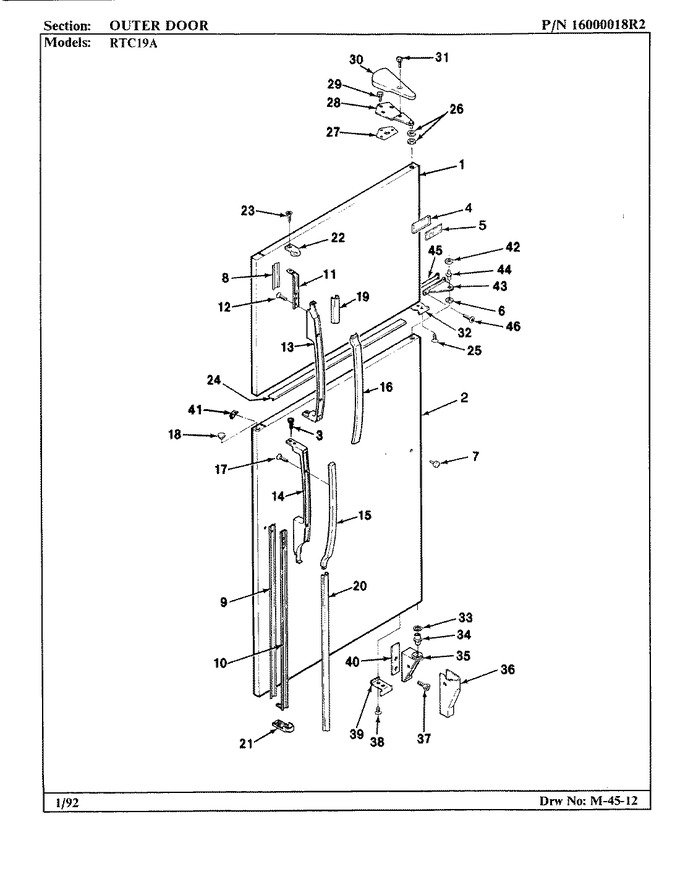

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 72042-3-WW | Panel, Frz. Door (wht) | 1 |
|
- | ||||
| 1 | 72042-3-AM | Panel, Frz. Door (alm) | 1 |
|
- | ||||
| 2 | 72042-8-AM | Panel, F.f. Door (alm) | 1 |
|
- | ||||
| 2 | 72042-8-WW | Panel, F.f. Door (wht) | 1 |
|
- | ||||
| 3 | 65275-22 | Screw | 1 |
|
- | ||||
| 4 | 67673-1 | Bezel, Nameplate | 1 |
|
- | ||||
| 5 | 67194-1 | Insert, Nameplate | 1 |
|
- | ||||
| 6 | 54233-2 | Washer | 1 |
|
- | ||||
| 7 | 67678-2 | Plug Button (wht) | 1 |
|
- | ||||
| 7 | 67678-3 | Plug Button, Handle Top (alm) | 1 |
|
- | ||||
| 8 | 67746-3 | Shim, Trim | 1 |
|
- | ||||
| 9 | 67746-5 | Shim, Trim | 1 |
|
- | ||||
| 10 | 67157-5 | Bracket, Handle | 1 |
|
- | ||||
| 11 | 67157-3 | Bracket, Handle | 1 |
|
- | ||||
| 12 | 65275-31 | Screw, Bracket To Handle | 1 |
|
- | ||||
| 13 | 67778-1 | Handle, Door | 1 |
|
- | ||||
| 14 | 67697-2 | Shim Handle | 1 |
|
- | ||||
| 14 | 65275-31 | Screw, Bracket To Handle | 1 |
|
- | ||||
| 14 | 67778-1 | Handle, Door | 1 |
|
- | ||||
| 14 | 67697-3 | Shim Handle | 1 |
|
- | ||||
| 14 | 67697-4 | Shim | 1 |
|
- | ||||
| 14 | 66799-3 | Clip, Handle Screw | 1 |
|
- | ||||
| 15 | 67153-1 | Insert, Handle (freezer) | 1 |
|
- | ||||
| 16 | 67153-1 | Insert, Handle (freezer) | 1 |
|
- | ||||
| 17 | 65275-44 | Screw | 1 |
|
- | ||||
| 18 | 55782-10 | Plug Button, Hdle & Door Stop | 1 |
|
- | ||||
| 18 | 55782-6 | Plug Button (almond) | 1 |
|
- | ||||
| 18 | 67634-2 | Plug Button, Hinge Cup (wht) | 1 |
|
- | ||||
| 18 | 67634-3 | Plug Button, Hinge Cup (alm) | 1 |
|
- | ||||
| 19 | 67805-3 | Trim Handle (frz) | 1 |
|
- | ||||
| 20 | 67805-5 | Trim, Extension | 1 |
|
- | ||||
| 21 | 68818-1 | Endcap, Handle (f.f. Door) | 1 |
|
- | ||||
| 22 | 67382-1 | Endcap, Handle (frz.) | 1 |
|
- | ||||
| 23 | 65275-22 | Screw | 1 |
|
- | ||||
| 23 | 65275-26 | Screw (no.12 X 5/8``) | 1 |
|
- | ||||
| 24 | 66651-6 | Trim, Fresh Food Door | 1 |
|
- | ||||
| 25 | 65275-18 | Screw, Freezer Stop | 1 |
|
- | ||||
| 26 | 54233-1 | Washer | 1 |
|
$ 7.71 | ||||
| 27 | 65031-1 | Shim, Upper Hinge | 1 |
|
- | ||||
| 28 | 67456-2 | Hinge, Top | 1 |
|
- | ||||
| 28 | 56144-13 | Plug Button, Upper Hinge (wht) | 1 |
|
- | ||||
| 29 | WP3-24838-048 | Screw (Replaces: 9986-87) | 1 |
|
$ 7.00 | ||||
| 30 | 67229-4 | Cover, Upper Hinge(wht.) | 1 |
|
- | ||||
| 31 | 403060-1 | Screw, Hinge Cover | 1 |
|
- | ||||
| 32 | 67662-1 | Stop, Door | 1 |
|
- | ||||
| 33 | 67483-3 | Washer, Lower Hinge (Replaces: 67483-2) | 1 |
|
Immediately | $ 45.86 | |||
| 34 | 67485-1 | Pin Lower Hinge | 1 |
|
- | ||||
| 35 | 67772-1 | Hinge, Lower | 1 |
|
- | ||||
| 35 | 67103-1 | Tapping Plate | 1 |
|
- | ||||
| 35 | 65275-10 | Screw, Tapping Plate | 1 |
|
- | ||||
| 36 | 67117-2 | Cover,lower Hinge | 1 |
|
- | ||||
| 36 | 401005-4 | Screw, Cover | 1 |
|
- | ||||
| 37 | 65275-25 | Screw | 1 |
|
- | ||||
| 38 | 65275-26 | Screw (no.12 X 5/8``) | 1 |
|
- | ||||
| 39 | 67770-1 | Door Stop, Fresh Food | 1 |
|
- | ||||
| 40 | 67323-1 | Shim, Lower Hinge | 1 |
|
- | ||||
| 41 | 67386-1 | Clip, Handle | 1 |
|
- | ||||
| 42 | 67483-1 | Washer, Center Hinge (upper) | 1 |
|
- | ||||
| 43 | 67775-1 | Hinge, Center | 1 |
|
- | ||||
| 44 | 67322-1 | Pin, Center Hinge | 1 |
|
- | ||||
| 45 | 67475-1 | Tapping Plate | 1 |
|
- | ||||
| 45 | 67484-1 | Shim, Center Hinge | 1 |
|
- | ||||
| 46 | 65275-21 | Screw, Center Hinge | 1 |
|
- |
