Diagram for 02 - Door (inner)
02 - Door (inner)

Diagram for 03 - Door (outer)
03 - Door (outer)

Diagram for 04 - Freezer Compartment
04 - Freezer Compartment

Diagram for 05 - Fresh Food Compartment
05 - Fresh Food Compartment

Diagram for 06 - Optional Ice Maker Kit
06 - Optional Ice Maker Kit

Diagram for 07 - Shelves & Accessories
07 - Shelves & Accessories

Diagram for 08 - Unit Compartment & System
08 - Unit Compartment & System


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 67003-2 Liner, Frz. Door Appelez-nous -
2 67004-1 Liner, Door Appelez-nous -
3 67744-3 Gasket Appelez-nous -
4 67744-4 Gasket Appelez-nous -
5 67033-4 Retainer, Door Seal Appelez-nous -
6 67033-1 Retainer, Door Seal Appelez-nous -
7 67033-5 Retainer, F.f. Door Gasket Appelez-nous -
8 67033-1 Retainer, Door Seal Appelez-nous -
9 67208-1 Endcap, Shelf Trim Special Order $ 11.62

10 67195-2 Organizer Appelez-nous -
11 67718-11 Trim, Door Shelf Appelez-nous -
12 67718-5 Trim, Door Shelf Appelez-nous -
13 67213-1 Endcap, Shelf Trim (sand Beige Special Order $ 9.86

14 67208-1 Endcap, Shelf Trim Special Order $ 11.62

15 28272-6 Bumper, Door Appelez-nous -
16 65275-5 Screw Appelez-nous -
17 67211-1 Endcap, Shelf Trim Special Order $ 11.45

18 67718-16 Trim, Door Shelf Appelez-nous -
19 67215-1 Tray, Egg Appelez-nous -
20 67195-2 Organizer Appelez-nous -
20 67195-1 Organizer Appelez-nous -
21 67041-1 Door, Dairy Appelez-nous -
22 67216-1 Tray, Butter Appelez-nous -
23 67718-5 Trim, Door Shelf Appelez-nous -
24 67213-1 Endcap, Shelf Trim (sand Beige Special Order $ 9.86

25 67718-11 Trim, Door Shelf Appelez-nous -
26 56686-5 Clip, Secondary Seal Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

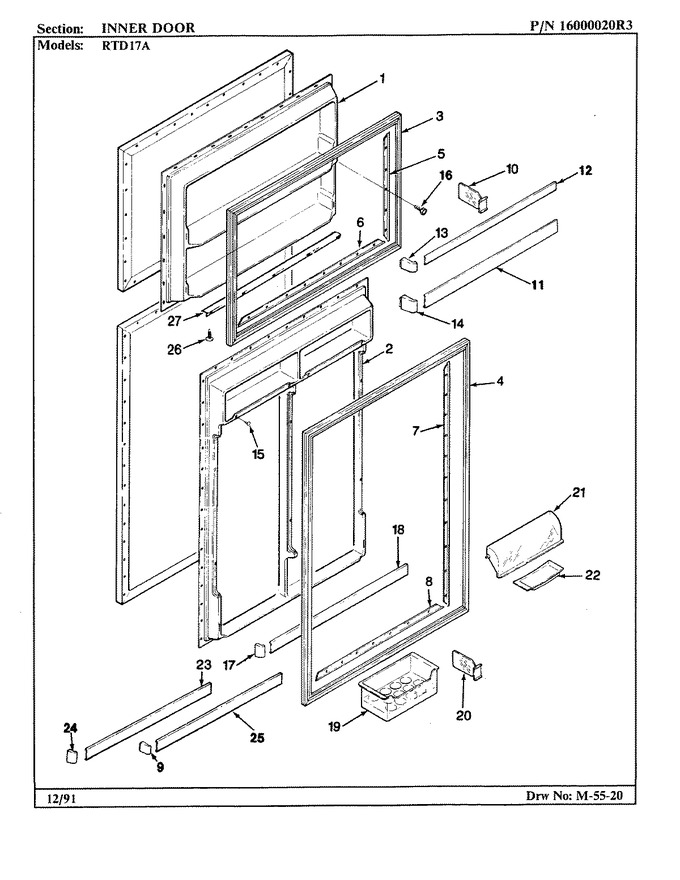

Diagram for RTD17A (BOM: AH31D)
