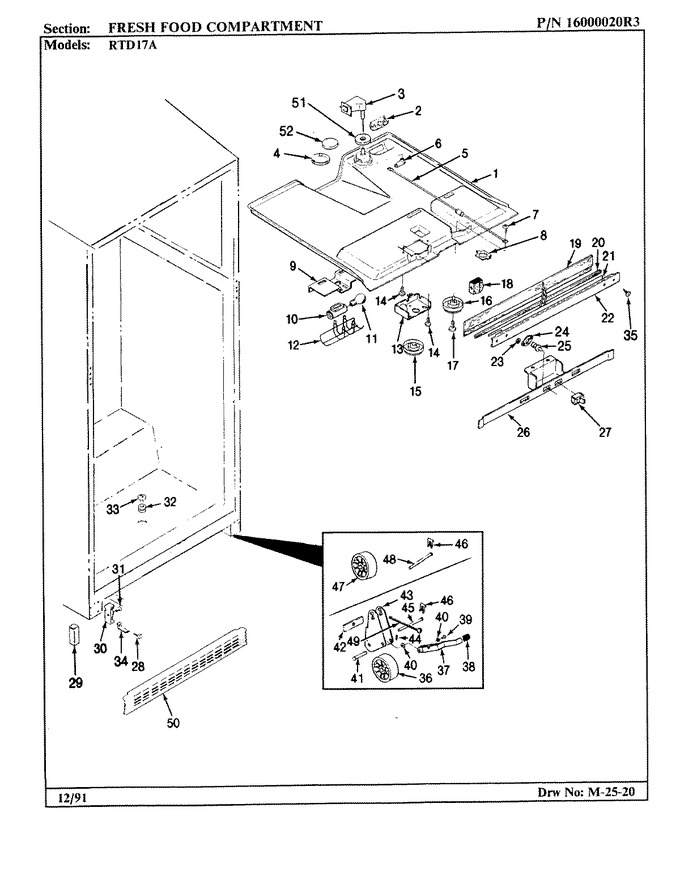

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67108-1		Top, F.f. Compartment		Appelez-nous	-
2	60120-2		Deflector		Appelez-nous	-
3	67558-1		Orifice, Damper		Appelez-nous	-
4	67493-1		Cover, Crank		Appelez-nous	-
5	67499-1		Rod Pad Control		Appelez-nous	-
6	67636-1		Crank, Frz. Control		Appelez-nous	-
7	WP59002061		Screw   (Replaces: 65275-13)				$ 6.98
7	420005-1		Washer, Control Rod		Appelez-nous	-
8	WP210720		Rivet   (Replaces: 26397-9)				$ 12.14
8	67703-1		Bracket, Light		Appelez-nous	-
9	67481-1		Shield Heat		Appelez-nous	-
10	67369-1		Holder, Lamp		Appelez-nous	-
11	40A15		Bulb, Light (40 Watt)   (Replaces: 31956)			Immediately	$ 1.98
12	67190-1		Guard, Light		Appelez-nous	-
12	67541-1		Retainer Light----na		Appelez-nous	-
13	67169-1		Cover Thermostat		Appelez-nous	-
14	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
15	67245-1		Knob, Control		Appelez-nous	-
16	67244-1		Knob Control		Appelez-nous	-
17	420092-900		Washer, Spring		Appelez-nous	-
17	W11233072		Screw   (Replaces: 405016-103)			Immediately	$ 12.62
18	WP68601-6		Control, Temperature   (Replaces: 68119-5)			Immediately	$ 233.80
18	406013-1		Screw		Appelez-nous	-
19	67482-1		Insulation Mullion		Appelez-nous	-
20	67478-1		Seal		Appelez-nous	-
21	67898-1		Heater Wire		Appelez-nous	-
21	67900-1		Wire Harness		Appelez-nous	-
21	67901-1		Wire Harness		Appelez-nous	-
22	67247-4-AM		Mullion Front		Appelez-nous	-
22	67247-4-WW		Mullion Front		Appelez-nous	-
23	431041-505		Nut, Push-on		Appelez-nous	-
24	67360-1		Ground Plate		Appelez-nous	-
25	67724-1		Switch, Plun		Appelez-nous	-
25	402020-103		Screw, Panel		Appelez-nous	-
26	400015-103		Screw		Appelez-nous	-
26	67251-1		Facade, Control		Appelez-nous	-
27	67363-1		Switch, Mullion		Appelez-nous	-
28	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
29	67117-3		Cover Hinge		Appelez-nous	-
30	67854-2		End Cap (l)		Appelez-nous	-
30	67854-1		End Cap (r)		Appelez-nous	-
30	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
31	WP7101P126-60		Screw   (Replaces: 400061-1)			Immediately	$ 6.85
32	54531-7		Tube, Drain		Appelez-nous	-
33	65039-1		Cap, Drain Tube		Appelez-nous	-
34	67259-1		Clip, Kickplate		Appelez-nous	-
35	WP33002917		Screw   (Replaces: 65275-1)			Immediately	$ 6.90
36	67455-1		Wheel Front		Appelez-nous	-
37	67681-1		Lever, Lock (left)		Appelez-nous	-
37	67681-2		Lever, Lock (right)		Appelez-nous	-
38	67528-1		Handle, Lock Lever		Appelez-nous	-
39	406046-1		Screw		Appelez-nous	-
40	420007-400		Washer		Appelez-nous	-
41	67529-1		Axle Wheel		Appelez-nous	-
42	59101-1		Tapping Plate, Wheel		Appelez-nous	-
43	67530-1		Bracket, Wheel		Appelez-nous	-
44	62581-1		Clip, Retaining Wheel (rear)		Appelez-nous	-
45	29835-2		Pin, Wheel		Appelez-nous	-
46	60216-1		Clip		Appelez-nous	-
47	29835-2		Pin, Wheel		Appelez-nous	-
48	24580-4		Tip, Adjustment Screw		Appelez-nous	-
48	406083-1		Screw, Wheel Adjustment		Appelez-nous	-
49	67023-6		Grill, Kickplate		Appelez-nous	-
50	68989-1		Seal, Top Tower		Appelez-nous	-
51	69037-1		Disc, Crank Cover		Appelez-nous	-
