SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

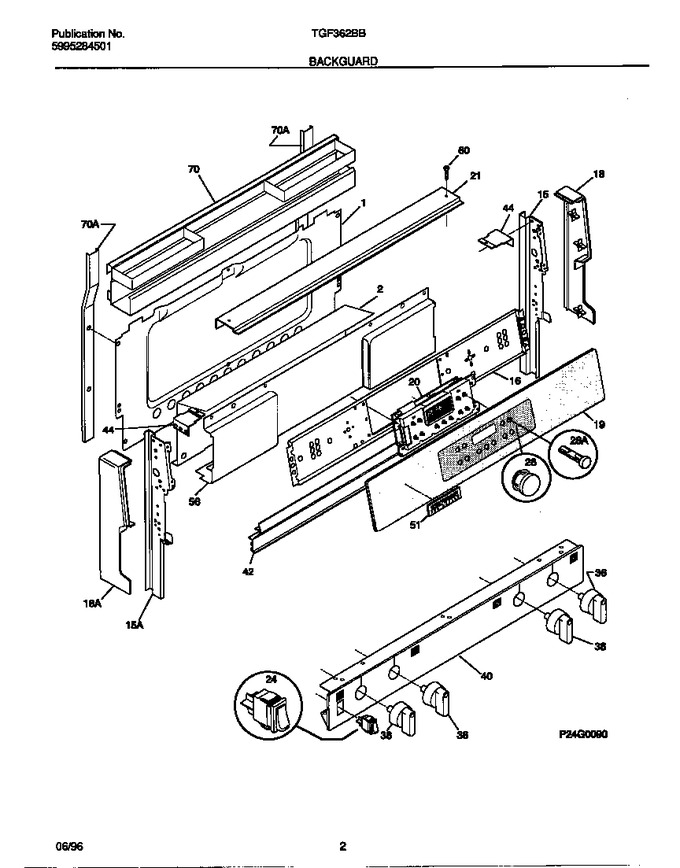

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028701		Shield-backguard, Rear Wall		Appelez-nous	-
2	316038801		Shield-backguard, Inner		Appelez-nous	-
15	316023111		Support-backguard, Lh		Appelez-nous	-
15	316023110		Support-backguard, Rh		Appelez-nous	-
16	316042605		Plate, Instrument Mtg, Black		Appelez-nous	-
18	316021800		End Cap, Black, Rh				$ 81.32
18	316021801		End Cap, Black, Lh				$ 94.29
20	316080102CP		Clock/timer, Eoc   (Replaces: 316080102)		Appelez-nous	-
21	316039201		Trim-canopy/shield		Appelez-nous	-
24	316070901		Switch-rocker, Black		Appelez-nous	-
28	316015102		Push Button, Clock/timer/eoc, Black				$ 50.35
28	316080600		Shaft-push Button, Clock/timer/eoc				$ 49.41
36	316085001		Knob-control, Black		Appelez-nous	-
40	316062349		Panel-manifold, Stainless		Appelez-nous	-
42	5303272839		Trim/vent		Appelez-nous	-
44	5303272831		Bracket-backguard, (2)		Appelez-nous	-
51	316074200		Nameplate, Tappan		Appelez-nous	-
56	316074902		Deflector-flue, Black		Appelez-nous	-
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
70	5303500001		Support, Spice Rack		Appelez-nous	-
70	316069700		Rack-spice, Stainless		Appelez-nous	-
*02760	316519700		Screw, Cup Pt, 8-18 X 3/8   (Replaces: 316021108)				$ 10.02
*02761	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-
*02762	316001435		Harness-wiring, Backguard		Appelez-nous	-
19A	316028326		Panel-control, Glass		Appelez-nous	-
19B	5303272836		Clip-backguard (not Illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
