SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

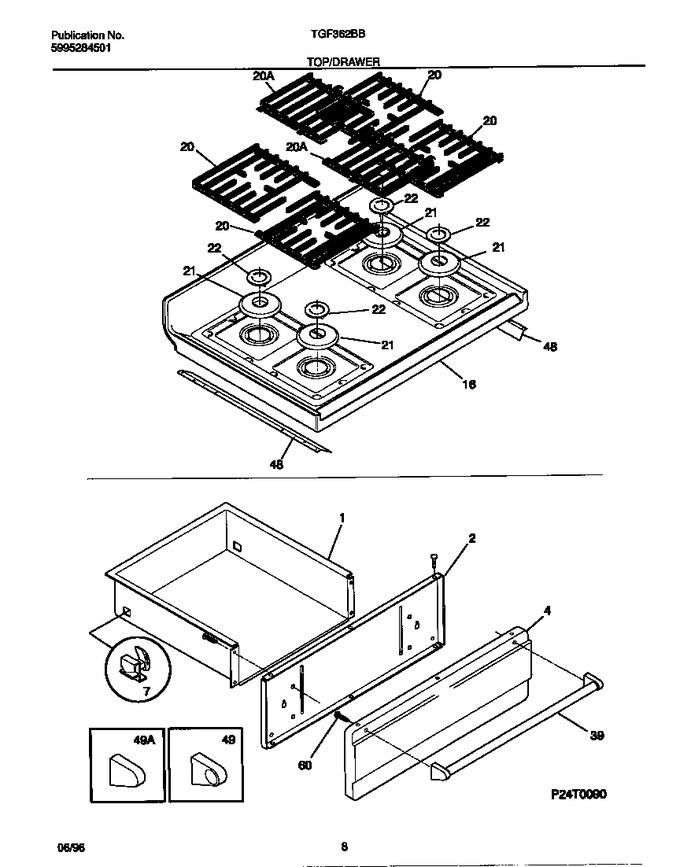

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	316063503		Shield-panel		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
20	316070000		Grate, Center, (2)		Appelez-nous	-
20	316069900		Grate, Sides, (4)		Appelez-nous	-
21	316011300		Trim Ring-burner, Black, Small				$ 68.59
22	316011003		Cap-burner, Gray, Small, (2)		Appelez-nous	-
39	316008306		Handle Ov Door, Stainless		Appelez-nous	-
48	316077401		Shield-maintop		Appelez-nous	-
49	5303307192		End Cap-handle, Black, Rh		Appelez-nous	-
49	5303307193		End Cap-handle, Black, Lh		Appelez-nous	-
60	316089500		Screw-drawer Handle, 10-16 X .486, (2)				$ 13.46
*02766	3131903		Bumper				$ 55.36
*02767	3018702		Plug-button,glide ,(4)		Appelez-nous	-
*02768	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*02769	316519700		Screw, Cup Pt, 8-18 X 3/8   (Replaces: 316021108)				$ 10.02
*02770	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16				$ 6.62
*02771	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
*02772	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-
16A	5303291521		Main, Top Black		Appelez-nous	-
16B	5303271891		Gusset-top Mtg, Rh (not Illustrated)		Appelez-nous	-
16C	5303271892		Gusset-top Mtg, Lh (not Illustrated)		Appelez-nous	-
4A	316056209		Panel-drawer, Black		Appelez-nous	-
4B	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
