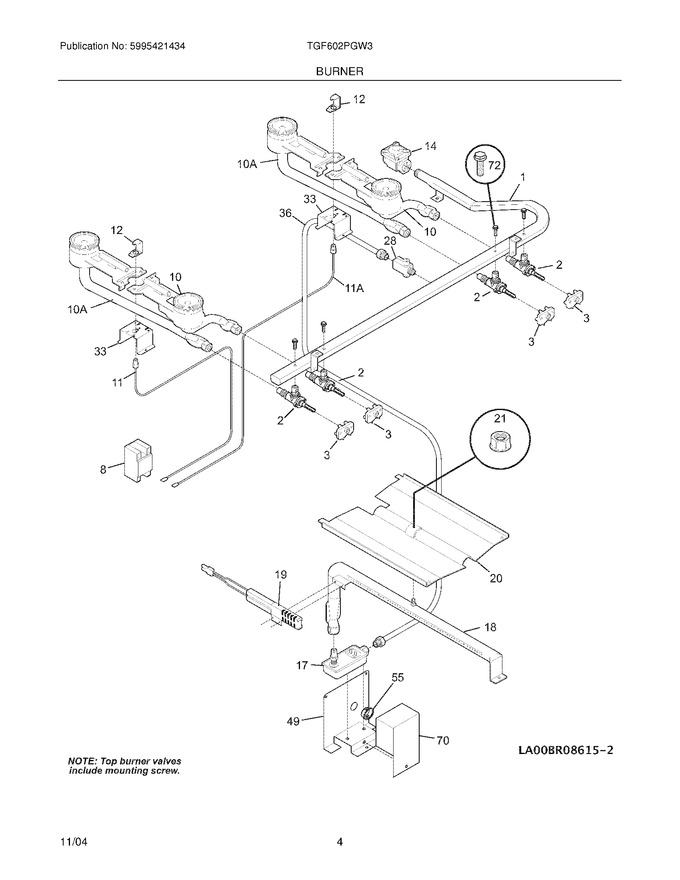

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318177401		Manifold		Appelez-nous	-
12	5303311554		Retainer,ignitor		Appelez-nous	-
19	5303935066		Ignitor,oven Burner   (Replaces: 318177720)			Immediately	$ 59.58
20	3203676		Baffle,oven Burner		Appelez-nous	-
21	154079601		Nut,keps ,10-24   (Replaces: 3201885)				$ 0.41
28	318087400		Valve-shut Off		Appelez-nous	-
33	5303210471		Bracket-burner Mtg		Appelez-nous	-
36	318249303		Tube		Appelez-nous	-
49	3131069		Bracket,safety Valve		Appelez-nous	-
55	5303324193		Bushing,snap ,nylon		Appelez-nous	-
70	3131088		Cover,safety Valve		Appelez-nous	-
72	5303323141		Screw,valve Mtg ,1/4-20 X 5/16		Appelez-nous	-
11No.	318148504		Ignitor,top Burner		Appelez-nous	-
F10	5303311551		Burner-top, Front		Appelez-nous	-
F10A	5303131079		Burner,top ,rear				$ 129.78
F11A	318083201		Ignitor-top Burner,front		Appelez-nous	-
F14	5308007974		Regulator-pressure				$ 309.02
F17	318087200		Valve-safety		Appelez-nous	-
F18	5303202752		Burner-oven				$ 26.83
F2	318087100		Valve-top Burner		Appelez-nous	-
F3	318232608		Wiring Harness,w/igntr Switch		Appelez-nous	-
F8	5304518635		Module,spark   (Replaces: 316135700)				$ 87.21
NI	5303286686		Nut,support Ovn Vlv		Appelez-nous	-
