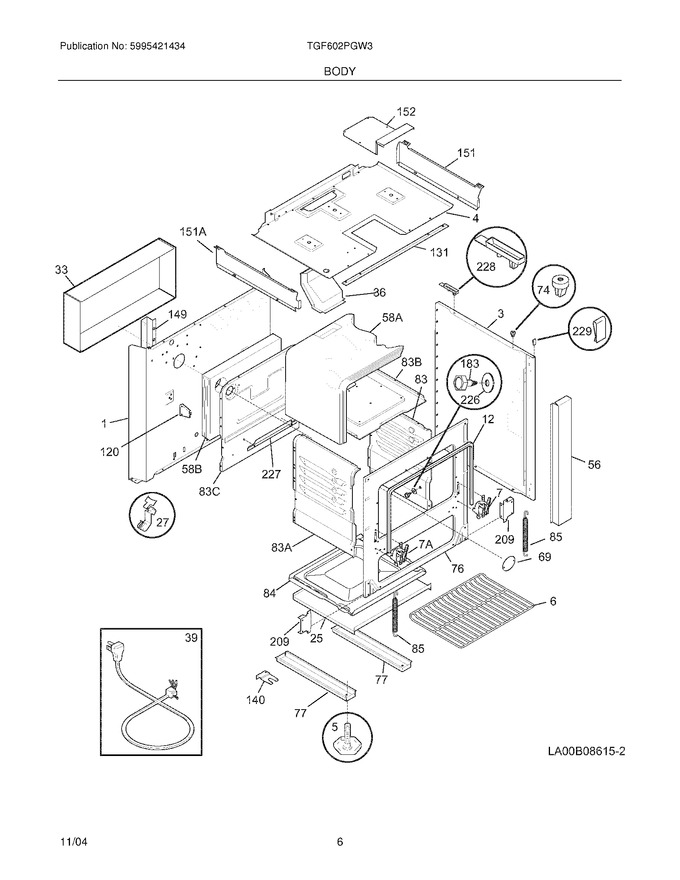

SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318076301		Back,main		Appelez-nous	-
3	5303051061		Panel-body Side (white)		Appelez-nous	-
4	318133505		Burner Box,top		Appelez-nous	-
5	318175510		Screw-leveling   (Replaces: 318175503)			Immediately	$ 24.26
6	5303311539		Rack,oven		Appelez-nous	-
7	3205894		Hinge-oven Door, Rh				$ 55.91
12	5308008022		Seal,oven Door				$ 124.89
25	318121701		Panel,oven Bottom		Appelez-nous	-
27	5303284616		Clip,thermo Bulb Mtg				$ 9.86
33	318114301		Cover Wire Back		Appelez-nous	-
36	318089700		Flue		Appelez-nous	-
39	318144003		Cord,service		Appelez-nous	-
56	08013993		Trim-bodyside, White		Appelez-nous	-
69	318036400		Plate-oven Light,small Oven		Appelez-nous	-
74	3051063		Grommet,bodyside		Appelez-nous	-
76	318133902		Frame,oven Front		Appelez-nous	-
77	318166701		Rail,base		Appelez-nous	-
83	318134300		Liner,oven ,rh		Appelez-nous	-
84	318134600		Liner,oven ,bottom		Appelez-nous	-
85	5308008028		Spring-oven Door		Appelez-nous	-
120	3051096		Support,oven Rear		Appelez-nous	-
131	318163000		Support,control Panel		Appelez-nous	-
140	3131041		Support Anti-tip		Appelez-nous	-
149	3131046		Channel,wiring		Appelez-nous	-
151	5303131054		Shield,bodyside ,lh		Appelez-nous	-
152	318135703		Cover-door Lock		Appelez-nous	-
183	08008037		Bolt, Shoulder		Appelez-nous	-
209	5303286692		Support,rail		Appelez-nous	-
226	3201899		Washer,flat		Appelez-nous	-
227	3131038		Support-oven Bottom		Appelez-nous	-
228	5303311537		Grommet-main Top		Appelez-nous	-
229	3131791		Clip,bodyside				$ 19.01
58A	318133712		Insulation,oven Wrapper		Appelez-nous	-
58B	318133713		Insulation,oven Back		Appelez-nous	-
7A	3205895		Hinge-oven Door, Lh		Appelez-nous	-
83A	318134200		Liner-oven, Lh		Appelez-nous	-
83B	5303324119		Liner-oven, Top		Appelez-nous	-
83C	318134800		Liner-oven, Back		Appelez-nous	-
F151	5303131053		Shield-bodyside,rh		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303131801		Screw, 10 X 3/8		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303307980		Screw,8-32 X 0.437			Immediately	$ 14.18

    View Diagram in Separate Window       Print Part List
