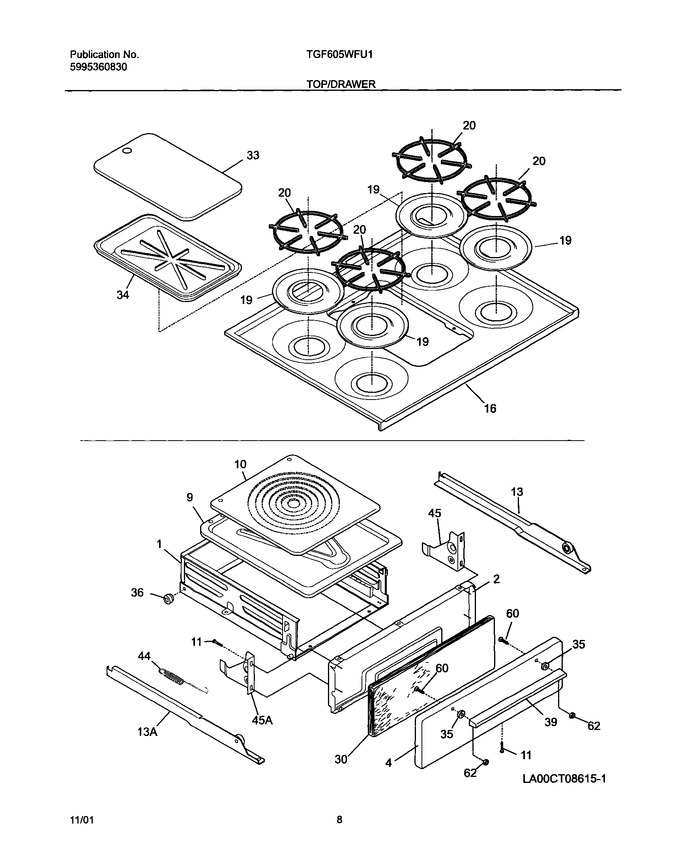

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318107000		Drawer,broiler		Appelez-nous	-
2	318135100		Liner,broiler Door		Appelez-nous	-
4	318158102		Panel,drawer ,bisque ,front		Appelez-nous	-
9	318126200		Pan-broiler		Appelez-nous	-
10	318126300		Insert-broiler Pan		Appelez-nous	-
11	5303131801		Screw, 10 X 3/8		Appelez-nous	-
13	318136700		Channel-drawer		Appelez-nous	-
16	318192700		Panel,main Top ,bisque		Appelez-nous	-
19	5308011431		Pan-burner, (4)		Appelez-nous	-
20	5303272274		Grate, (4)		Appelez-nous	-
30	3017184		Insulation, Broiler Drawer		Appelez-nous	-
33	318169001		Cover,griddle ,bisque		Appelez-nous	-
34	318102600		Griddle				$ 188.24
35	5303310504		Spacer,handle ,oven Door ,(2)		Appelez-nous	-
36	5303935079		Roller		Appelez-nous	-
39	5308008085		Handle,drawer		Appelez-nous	-
44	318088300		Spring-broiler		Appelez-nous	-
45	318024400		Hinge-broiler,rh		Appelez-nous	-
60	5303310510		Screw,10-24 X 0.625				$ 14.18
62	154079601		Nut,keps ,10-24   (Replaces: 3201885)				$ 0.41
13A	318136701		Channel-drawer		Appelez-nous	-
45A	318024401		Hinge-broiler,lh		Appelez-nous	-
NI	3201899		Washer,flat ,hinge Assy		Appelez-nous	-
NI	3051050		Screw-shoulder				$ 12.29
NI	5303300414		Spacer, Cork & Rubber				$ 13.18
