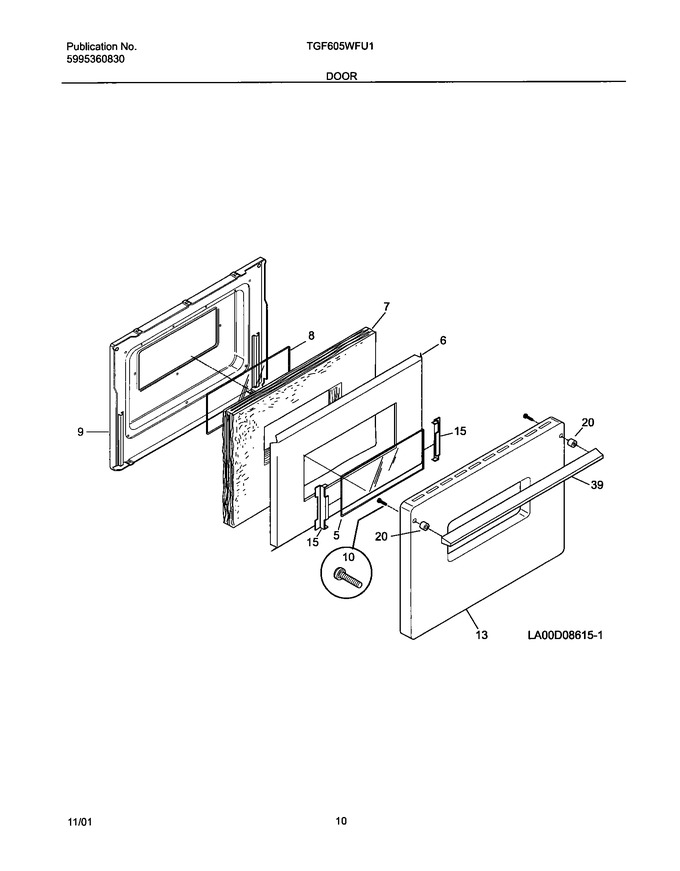

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	318211301		Glass,oven Door ,outer		Appelez-nous	-
6	318160300		Shield-insulation		Appelez-nous	-
7	5303018345		Insulation, Oven Door		Appelez-nous	-
8	318211300		Glass,oven Door		Appelez-nous	-
9	318113000		Liner,oven Door		Appelez-nous	-
10	5304405227		Screw,10-24 X 0.438		Appelez-nous	-
13	318158504		Panel,oven Door ,bisque		Appelez-nous	-
15	08007938		Bracket,glass Mtg		Appelez-nous	-
20	5303310504		Spacer,handle ,oven Door ,(2)		Appelez-nous	-
39	5303304012		Handle-door, Oven		Appelez-nous	-
NI	3051050		Screw-shoulder				$ 12.29
NI	5303300414		Spacer, Cork & Rubber				$ 13.18
