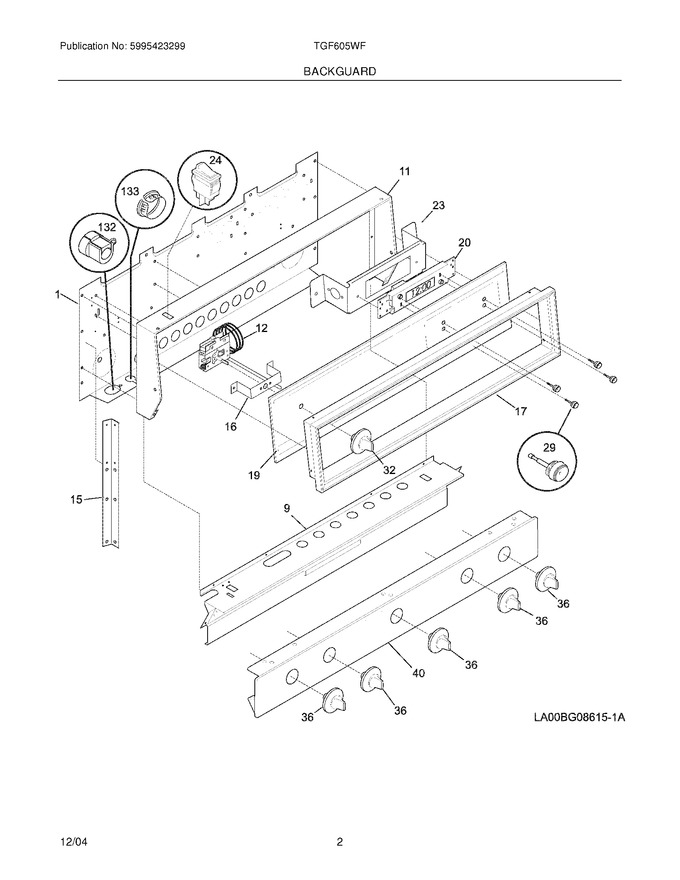

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318022401		Shield,backguard ,rear Wall		Appelez-nous	-
9	318162003		Shield-insulation		Appelez-nous	-
11	5303317082		Trim,control Panel		Appelez-nous	-
12	318059203		Thermostat-oven		Appelez-nous	-
15	5308013296		Support,backguard ,(2)		Appelez-nous	-
16	318171900		Bracket,control		Appelez-nous	-
17	318249700		Trim,control Panel		Appelez-nous	-
19	318001010		Panel,control ,glass		Appelez-nous	-
23	318015312		Bracket,clock Mtg		Appelez-nous	-
29	5303272306		Button,clock Set ,black		Appelez-nous	-
32	318016816		Knob,thermostat		Appelez-nous	-
36	318016209		Knob,control		Appelez-nous	-
40	318005300		Panel-manifold		Appelez-nous	-
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
133	08008009		Bushing,snap		Appelez-nous	-
F20	318184800		Clock/timer		Appelez-nous	-
F24	5308015487		Switch,oven Light ,rocker				$ 61.43
NI	154079601		Nut,keps ,10-24   (Replaces: 3201885)				$ 0.41
NI	5304453707		Screw, 8-32 X 3/8, (6)   (Replaces: 5303311333)			Immediately	$ 15.92
NI	5303311528		Screw,oval Hd Sq Dr ,6-20ab X 0.625 ,black		Appelez-nous	-
NI	5303324180		Screw,6 X 3/8		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
