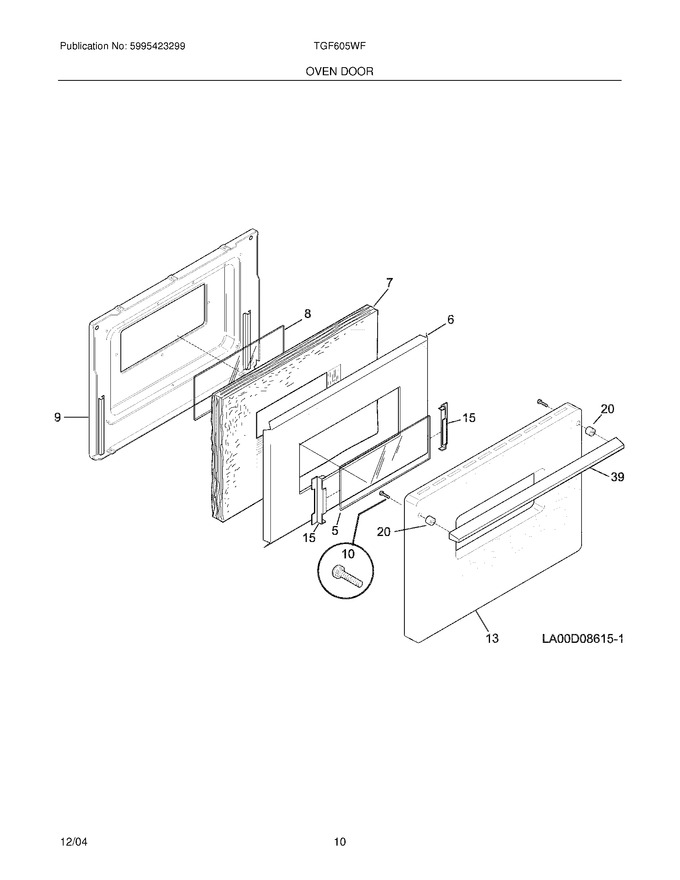

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	5303317084		Glass-oven Door, Inner		Appelez-nous	-
6	318160300		Shield-insulation		Appelez-nous	-
7	318133770		Insulation,oven Door		Appelez-nous	-
8	5303316988		Glass-oven Door, Inner		Appelez-nous	-
9	318113000		Liner,oven Door		Appelez-nous	-
10	3051070		Screw,hex Washer Head ,10-24 X 0.438 ,special		Appelez-nous	-
13	318158504		Panel,oven Door ,bisque		Appelez-nous	-
15	08007938		Bracket,glass Mtg		Appelez-nous	-
20	5303310504		Spacer,handle ,oven Door ,(2)		Appelez-nous	-
39	5303304012		Handle-door, Oven		Appelez-nous	-
NI	316221001		Label,anti-tip		Appelez-nous	-
NI	3051050		Screw-shoulder				$ 12.29
NI	5303300414		Spacer, Cork & Rubber				$ 13.18
