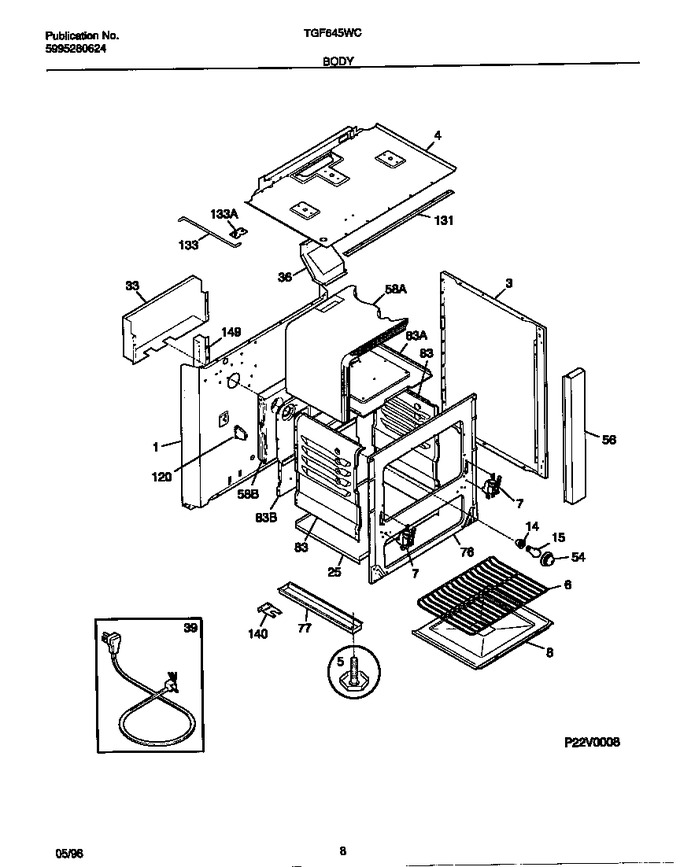

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Backguard
04 - Burner
05 - Body
06 - Top/drawer
07 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303311540 | Back-main |
|
- | |||||
| 3 | 5303051061 | Panel-body Side (white) |
|
- | |||||
| 4 | 316030503 | Burner Box |
|
- | |||||
| 5 | 318175510 | Screw-leveling (Replaces: 5303210257) |
|
Immediately | $ 24.26 | ||||
| 6 | 5303311539 | Rack,oven |
|
- | |||||
| 14 | 316116400 | Socket-light/lamp, Oven (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 15 | 3201908 | Lamp-oven Light |
|
- | |||||
| 25 | 3011645 | Panel-oven Bottom |
|
- | |||||
| 33 | 5303311541 | Shield-rear Wall |
|
- | |||||
| 36 | 5303286747 | Flue |
|
- | |||||
| 39 | 5303308453 | Cord,electric Power |
|
- | |||||
| 54 | 3009290 | Housing-oven Light |
|
- | |||||
| 56 | 08013993 | Trim-bodyside, White |
|
- | |||||
| 58 | 3017171 | Insulation, Oven Wrapper |
|
- | |||||
| 58 | 3017172 | Insulation, Oven Back |
|
- | |||||
| 76 | 5303286729 | Front Frame-oven |
|
- | |||||
| 83 | 5303316985 | Liner-oven, Top |
|
- | |||||
| 83 | 5303286740 | Liner-oven, Back |
|
- | |||||
| 120 | 3051096 | Support,oven Rear |
|
- | |||||
| 131 | 3205765 | Support-control Pnl |
|
- | |||||
| 133 | 6743 | Bracket-rod, Main Top |
|
- | |||||
| 133 | 3051554 | Rod-maintop Support |
|
- | |||||
| 140 | 3131041 | Retainer-insulation |
|
- | |||||
| 149 | 3131046 | Channel,wiring |
|
- | |||||
| *48617 | 5303131801 | Screw, 10 X 3/8 |
|
- | |||||
| *48618 | 3051070 | Screw, Hex Washer Head, 10-24 X 7/16, Special |
|
- | |||||
| *48619 | 08008037 | Bolt, Shoulder |
|
- | |||||
| *48620 | 5303316986 | Harness-backguard, Main |
|
- | |||||
| 3A | 3051063 | Grommet, Bodyside (not Illustrated) |
|
- | |||||
| 3B | 3131791 | Clip, Bodyside (not Illustrated) |
|
$ 19.01 | |||||
| 3C | 5303131053 | Shield-bodyside, Rh (not Illustrated) |
|
- | |||||
| 3D | 5303131054 | Shield-bodyside, Lh (not Illustrated) |
|
- | |||||
| 3E | 5303311537 | Grommet-main Top (not Illustrated) |
|
- | |||||
| 77A | 5303210256 | Rail-base, Lh |
|
- | |||||
| 77B | 5303210255 | Rail-base, Rh (not Illustrated) |
|
- | |||||
| 77C | 5303286692 | Support-rail (not Illustrated) |
|
- | |||||
| 7A | 3205894 | Hinge-oven Door, Rh |
|
$ 55.91 | |||||
| 7B | 3205895 | Hinge-oven Door, Lh |
|
- | |||||
| 7C | 5308008028 | Spring-oven Door (not Illustrated) |
|
- | |||||
| 7D | 3201899 | Washer, Hinge Assy, (4) (not Illustrated) |
|
- | |||||
| 83A | 5303286738 | Liner-oven, Rh |
|
- | |||||
| 83B | 5303286737 | Liner-oven, Lh |
|
- | |||||
| 8A | 5303286741 | Shield, Bottom |
|
- | |||||
| 8B | 3131038 | Support-oven Bottom (not Illustrated) |
|
- |
