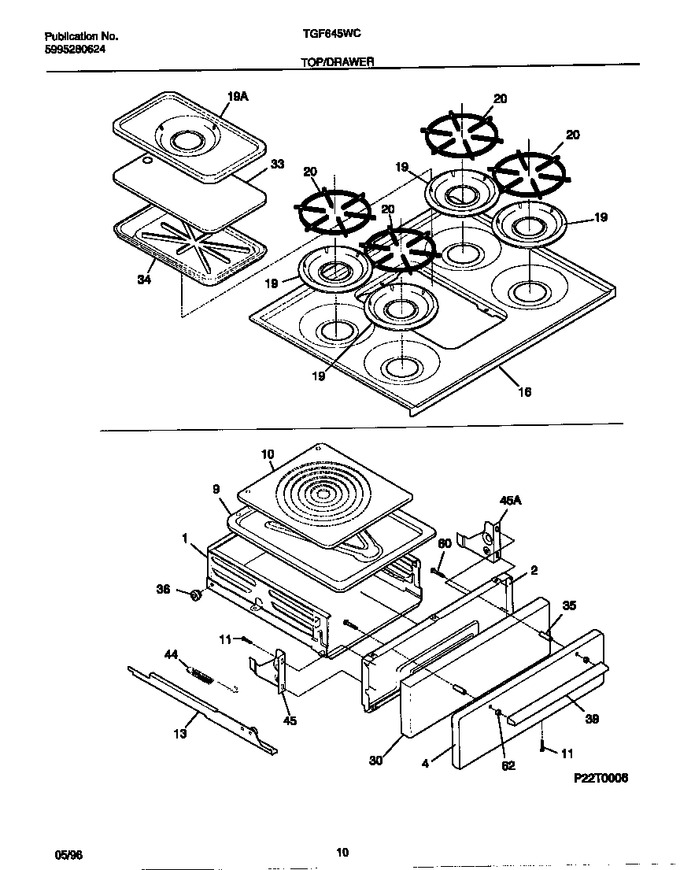

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303286742		Drawer-broiler		Appelez-nous	-
2	5303286743		Liner, Broiler Door		Appelez-nous	-
4	5303281361		Panel-drawer, White		Appelez-nous	-
9	5303286736		Pan Broiler		Appelez-nous	-
10	5303017712		Insert-broiler Pan		Appelez-nous	-
16	5308014034		Main Top, White		Appelez-nous	-
19	5308011431		Pan-burner, (4)		Appelez-nous	-
19	318067400		Pan-griddle, White		Appelez-nous	-
20	5303272274		Grate, (4)		Appelez-nous	-
30	3017184		Insulation, Broiler Drawer		Appelez-nous	-
33	5308013949		Cover-griddle, White		Appelez-nous	-
34	318102600		Griddle				$ 188.24
35	154079601		Nut   (Replaces: 3201885)				$ 0.41
36	5303308457		Roller		Appelez-nous	-
44	5303131030		Spring-broiler		Appelez-nous	-
45	5303308471		Hinge-broiler, Lh		Appelez-nous	-
45	5303308472		Hinge-broiler, Rh		Appelez-nous	-
62	5303310504		Spacer-handle, (2)		Appelez-nous	-
*48621	5303131801		Screw, 10 X 3/8		Appelez-nous	-
*48622	3051038		Nut		Appelez-nous	-
*48623	3051050		Screw-shoulder				$ 12.29
13A	5303051055		Channel-drawer, Rh				$ 56.60
13B	5303051056		Channel-drawer, Lha				$ 78.44
39A	5308008085		Handle,drawer		Appelez-nous	-
39B	5303051043		Screw-handle (not Illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
