View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Backguard
03 - Burner
04 - Body

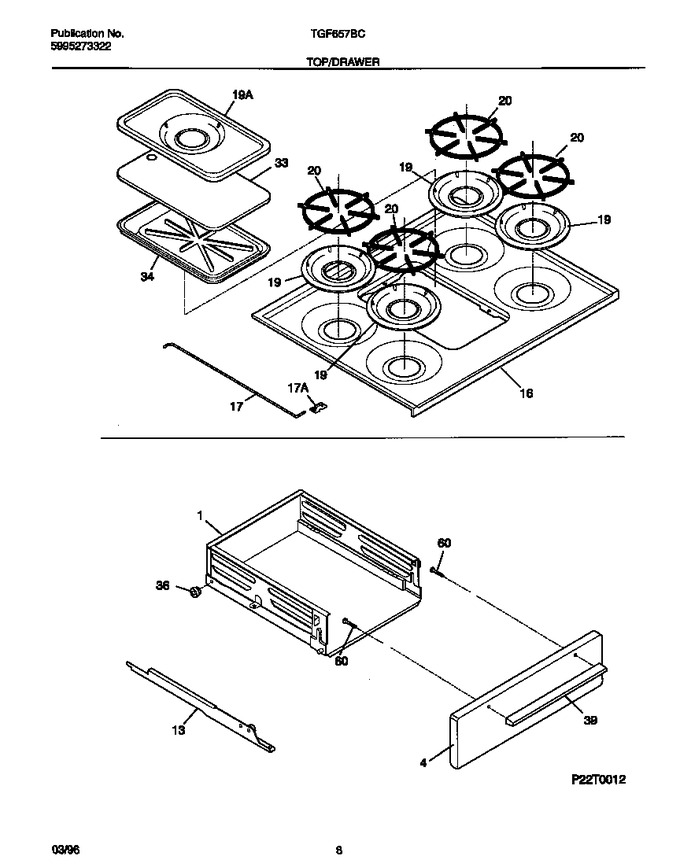

05 - Top/drawer
06 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303311535 | Drawer-utility |
|
- | |||||
| 4 | 5303311536 | Panel-drawer |
|
- | |||||
| 16 | 08014035 | Main Top, Almond |
|
- | |||||
| 17 | 3051554 | Rod-maintop Support |
|
- | |||||
| 17 | 6743 | Bracket-rod, Main Top |
|
- | |||||
| 19 | 318067401 | Pan-griddle, Almond |
|
- | |||||
| 19 | 5308011431 | Pan-burner, (4) |
|
- | |||||
| 20 | 5303272274 | Grate, (4) |
|
- | |||||
| 33 | 9067 | Cover-griddle, Almond |
|
- | |||||
| 34 | 318102600 | Griddle |
|
$ 188.24 | |||||
| 36 | 5303308457 | Roller |
|
- | |||||
| 39 | 10819 | Handle-drawer, Black |
|
- | |||||
| *35569 | 3051050 | Screw-shoulder |
|
$ 12.29 | |||||
| *35570 | 3201600 | Screw, Drawer Pnl, Glass Mtg. |
|
- | |||||
| 13A | 5303051055 | Channel-drawer, Rh |
|
$ 56.60 | |||||
| 13B | 5303051056 | Channel-drawer, Lha |
|
$ 78.44 | |||||
| 60A | 5303310510 | Screw-handle Mtg |
|
$ 14.18 | |||||
| 60B | 154079601 | Nut (not Illustrated) (Replaces: 3201885) |
|
$ 0.41 |
