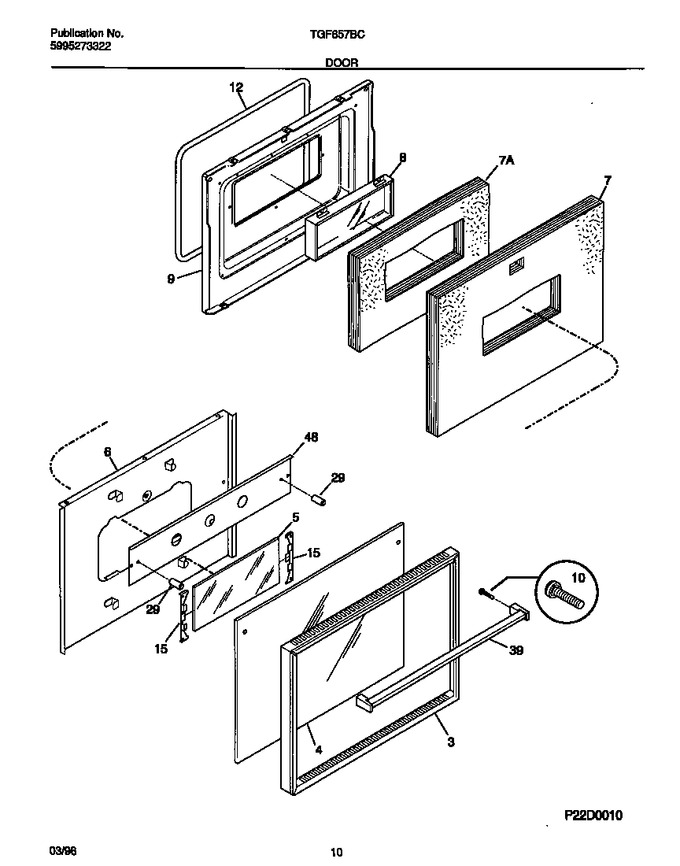

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303282558		Trim-oven Door		Appelez-nous	-
4	3131765		Glass-oven Door, Black, Outer		Appelez-nous	-
5	5308013865		Glass-oven Door, Inner		Appelez-nous	-
6	5303311534		Shield-wool		Appelez-nous	-
7	3131761		Insulation, Oven Door		Appelez-nous	-
7	3131762		Insulation, Oven Door		Appelez-nous	-
8	5303271567		Glass,oven Door ,inner		Appelez-nous	-
9	5303304057		Liner-oven Door		Appelez-nous	-
10	5303310510		Screw-handle Mtg				$ 14.18
12	5303311533		Seal,oven Door				$ 172.66
15	318122100		Bracket,glass Mtg		Appelez-nous	-
29	5303310535		Spacer-door		Appelez-nous	-
39	5303286852		Handle-door, Oven		Appelez-nous	-
48	3131764		Shield-heat		Appelez-nous	-
*35571	3051070		Screw, Hex Washer Head, 10-32 X 1/2, Special		Appelez-nous	-
*35572	3201600		Screw, Drawer Pnl, Glass Mtg.		Appelez-nous	-
*35573	5303131766		Screw, Trim Top				$ 10.87
*35574	5303308456		Screw, Door Frame				$ 10.06
