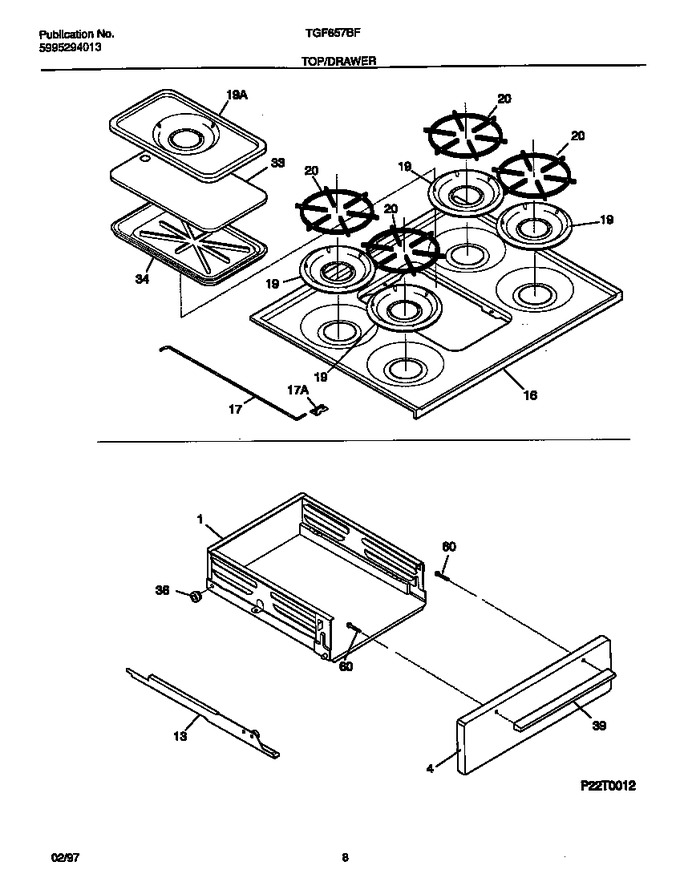

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303311535		Drawer-utility		Appelez-nous	-
4	5303311536		Panel-drawer		Appelez-nous	-
16	10815		Main Top, Chrome		Appelez-nous	-
17	3051554		Rod-maintop Support		Appelez-nous	-
17	6743		Bracket-rod, Main Top		Appelez-nous	-
19	5308013991		Pan-griddle		Appelez-nous	-
19	5308011431		Pan-burner, (4)		Appelez-nous	-
20	5303272274		Grate, (4)		Appelez-nous	-
33	M10816		Cover-griddle, Chrome   (Replaces: 10816)				$ 156.27
34	318102600		Griddle				$ 188.24
36	5303935079		Roller		Appelez-nous	-
39	10819		Handle-drawer, Black		Appelez-nous	-
60	5303310510		Screw-handle Mtg				$ 14.18
62	154079601		Nut   (Replaces: 3201885)				$ 0.41
*24857	3051050		Screw-shoulder				$ 12.29
*24858	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*24859	5303131801		Screw, 10 X 3/8		Appelez-nous	-
13A	5303051056		Channel-drawer, Lha				$ 78.44
13B	5303051055		Channel-drawer, Rh (not Illustrated)				$ 56.60
