SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

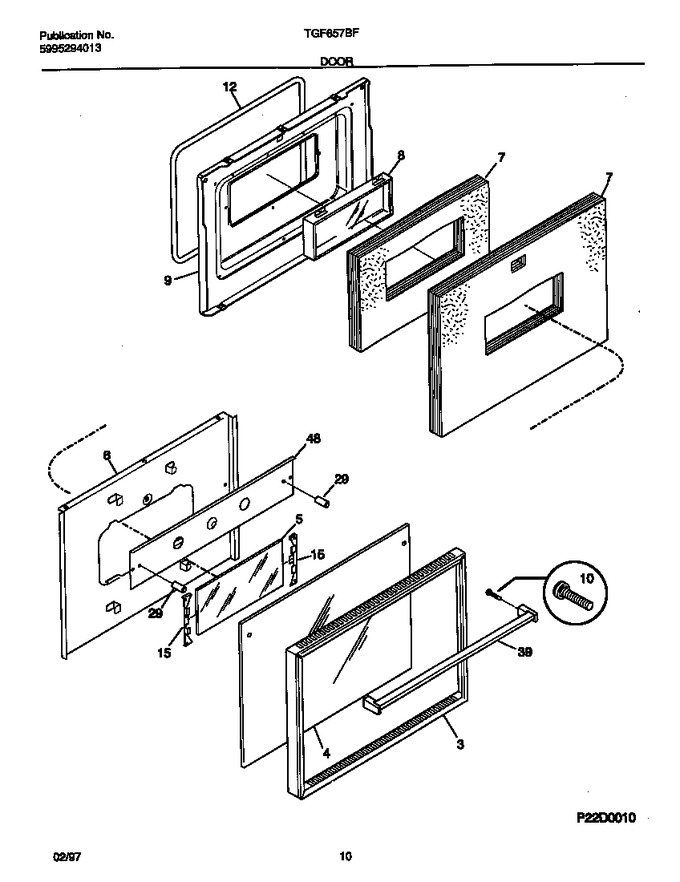

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303282558		Trim-oven Door		Appelez-nous	-
4	3131765		Glass-oven Door, Black, Outer		Appelez-nous	-
5	5308013865		Glass-oven Door, Inner		Appelez-nous	-
6	5303311534		Shield-wool		Appelez-nous	-
7	3131761		Insulation, Oven Door		Appelez-nous	-
8	5303271567		Glass,oven Door ,inner		Appelez-nous	-
9	318112800		Liner-oven Door		Appelez-nous	-
10	5303310510		Screw-handle Mtg				$ 14.18
12	5303311533		Seal,oven Door				$ 172.66
15	318122100		Bracket,glass Mtg		Appelez-nous	-
29	5303310535		Spacer-door		Appelez-nous	-
48	3131764		Shield-heat		Appelez-nous	-
*24860	3051050		Screw-shoulder				$ 12.29
*24861	3051070		Screw, Hex Washer Head, 10-24 X 7/16, Special		Appelez-nous	-
*24862	5303308456		Screw, 8-18 X 0.531, Door Frame				$ 10.06
39A	5303286852		Handle-door, Oven		Appelez-nous	-
39B	5303311174		Screw-handle (not Illustrated)			Immediately	$ 14.89

    View Diagram in Separate Window       Print Part List
