SELECT A DIAGRAM

01 - Cover

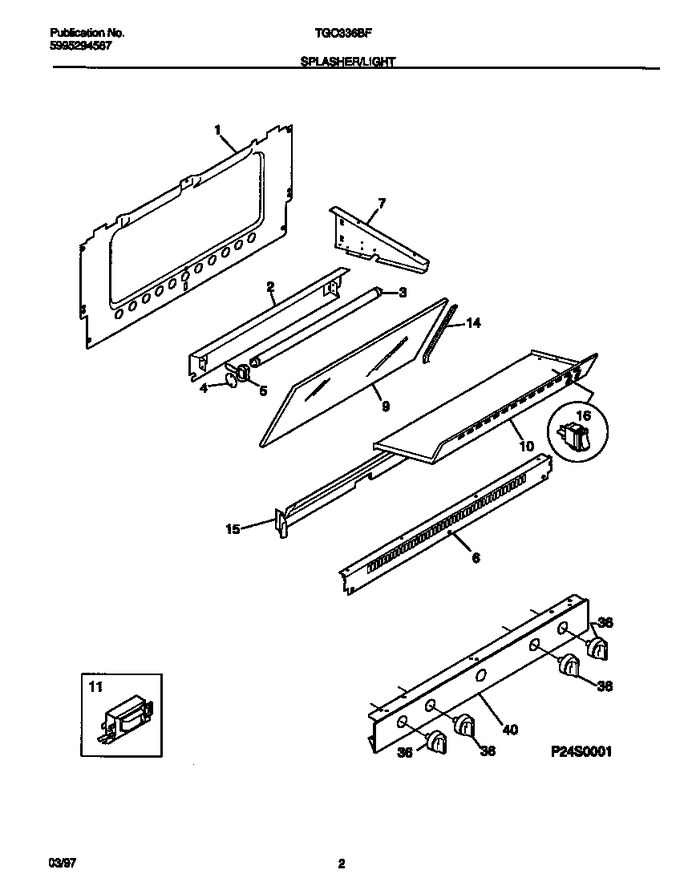

02 - Splasher/light


03 - Control Panel


04 - Burner


05 - Lower Body


06 - Upper Body


07 - Top/drawer


08 - Lower Door


09 - Upper Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3204441		Panel-back		Appelez-nous	-
2	5303208612		Reflector, Work Light		Appelez-nous	-
3	3131275		Lamp-fluorescent, Backguard				$ 49.40
4	3012947		Insulator, Light		Appelez-nous	-
5	5303282715		Receptacle-starter		Appelez-nous	-
6	316084301		Trim-vent		Appelez-nous	-
9	3200496		Glass-splasher		Appelez-nous	-
10	316012900		Panel-splasher-upper		Appelez-nous	-
11	316099800		Ballast-lamp		Appelez-nous	-
15	5303209039		Trim-splasher Filler		Appelez-nous	-
16	5308015487		Switch, Oven Light, Rocker Type				$ 61.43
36	316023020		Knob-control, (4)		Appelez-nous	-
40	316086825		Panel-manifold, Black		Appelez-nous	-
*54600	08067960		Fastener, Clip Cable		Appelez-nous	-
*54601	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02
*54602	3206218		Starter-lamp				$ 54.08
14A	08010549		Trim-splasher, Rh		Appelez-nous	-
14B	5303269815		Trim-splasher, Lh (not Illustrated)		Appelez-nous	-
7A	3200526		Support-upper Oven, Rh		Appelez-nous	-
7B	3200527		Support-upper Oven, Lh (not Illustrated)		Appelez-nous	-
