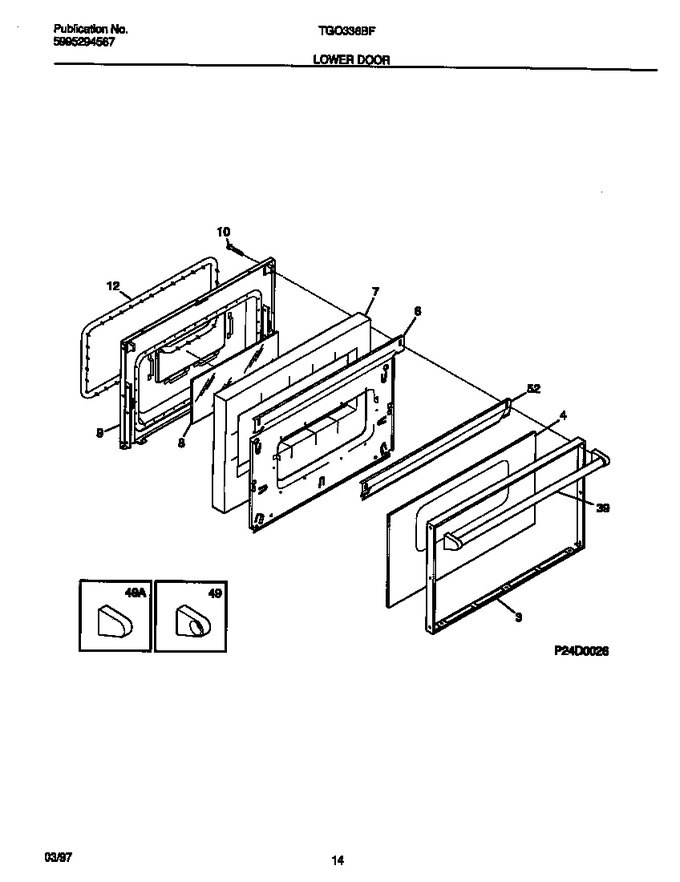

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316067802		Trim-oven Door		Appelez-nous	-
4	316089000		Glass-oven Door, Outer		Appelez-nous	-
6	316088403		Shield-wool		Appelez-nous	-
7	316439802		Insulation,oven Door   (Replaces: 316076401)			Immediately	$ 192.78
8	316088600		Glass,oven Door ,inner				$ 85.52
9	316066610		Liner-oven Door		Appelez-nous	-
10	316001001		Screw-handle Mtg, Wafer Head, 10-24 X 3.375		Appelez-nous	-
12	5303202011		Seal-oven Door, Non Self-clean				$ 166.84
39	316008302		Handle-door, Oven		Appelez-nous	-
49	5303307192		End Cap-handle, Black, Rh		Appelez-nous	-
49	5303307193		End Cap-handle, Black, Lh		Appelez-nous	-
52	316081303		Shield-oven Door, Black, Top		Appelez-nous	-
*54624	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*54625	5303212671		Screw, Cr Pan Hd Sems, 8-32bp X 1.00		Appelez-nous	-
*54626	5303285179		Screw-oven Door, Wafer Head, 8-32t X 1/2, Black				$ 13.46
