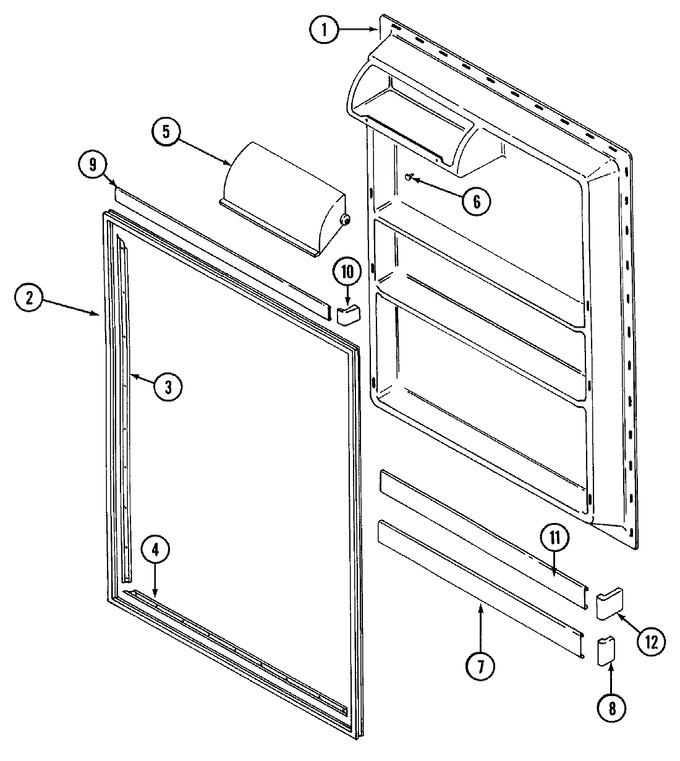

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61001059		Liner, F.f. Door	11	Appelez-nous	-
1	65275-5		Screw	11	Appelez-nous	-
2	70025-4		Gasket	11			$ 153.02
3	69999-8		Retainer, F.f. Gasket (side)	11	Appelez-nous	-
4	69999-4		Retainer, F.f Gasket (top/btm)	11	Appelez-nous	-
5	61001186		Door, Dairy	11	Appelez-nous	-
6	28272-6		Bumper, Door	11	Appelez-nous	-
7	61001790		Trim, Door Shelf	11	Appelez-nous	-
8	67211-2		Endcap, Shelf Trim	11		Immediately	$ 17.62
9	61001788		Trim, Door Shelf	11	Appelez-nous	-
10	67213-2		Endcap, Shelf Trim (wht)	11			$ 12.64
11	61001789		Trim, Door Shelf	11	Appelez-nous	-
12	67208-3		Endcap, Shelf Trim	11			$ 13.60
