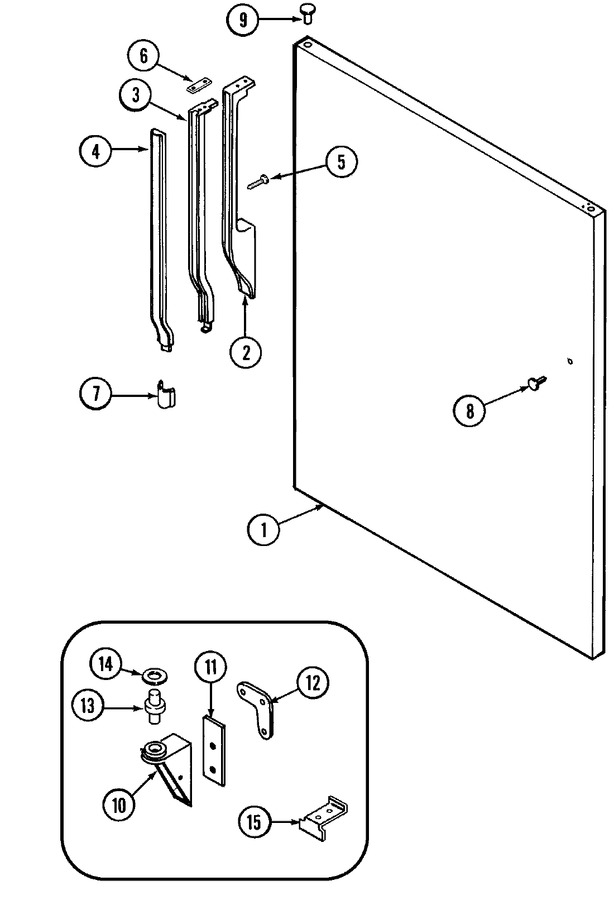

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72342-3-WW		Panel, F.f. Door (wht)	11	Appelez-nous	-
2	W10856122		Screw   (Replaces: 61001287)	11			$ 6.98
2	67923-1		Handle, Door	11	Appelez-nous	-
2	65275-57		Screw	11	Appelez-nous	-
3	67921-1		Frame, F.f. Handle	11	Appelez-nous	-
4	67925-5		Insert, Handle (wht)	11	Appelez-nous	-
5	65275-44		Screw	11	Appelez-nous	-
6	67934-1		Shim, Handle	11	Appelez-nous	-
7	67931-2		Endcap, F.f. Handle	11	Appelez-nous	-
7	400011-35		Screw	11	Appelez-nous	-
8	69480-2		Plug Button, Handle Hole (wht)	11	Appelez-nous	-
8	67678-2		Plug Button (wht)	11	Appelez-nous	-
9	67634-2		Plug Button, Hinge Cup (wht)	11	Appelez-nous	-
10	65275-51		Screw, Lower Hinge	11	Appelez-nous	-
10	69516-2		Hinge, Lower (blk)	11	Appelez-nous	-
11	69510-1		Shim, Lower Hinge	11	Appelez-nous	-
12	67874-1		Tapping Plate, Lower Hinge	11	Appelez-nous	-
12	65275-59		Screw	11	Appelez-nous	-
13	69845-1		Pin, Lower Hinge	11			$ 44.55
14	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)	11		Immediately	$ 45.86
15	65275-48		Screw	11	Appelez-nous	-
15	69256-2		Stop, Door	11	Appelez-nous	-
