01 - Freezer Compartment

Diagram for 02 - Freezer Inner Door
02 - Freezer Inner Door

Diagram for 03 - Freezer Outer Door
03 - Freezer Outer Door

Diagram for 04 - Fresh Food Compartment
04 - Fresh Food Compartment

Diagram for 05 - Fresh Food Inner Door
05 - Fresh Food Inner Door

Diagram for 06 - Fresh Food Outer Door
06 - Fresh Food Outer Door

Diagram for 07 - Ice & Water Dispenser
07 - Ice & Water Dispenser

Diagram for 08 - Ice Bin
08 - Ice Bin

Diagram for 09 - Ice Maker
09 - Ice Maker

Diagram for 10 - Shelves & Accessories
10 - Shelves & Accessories

Diagram for 11 - Unit Compartment & System
11 - Unit Compartment & System

Diagram for 12 - Wiring Information
12 - Wiring Information


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 65275-5 Screw 11 Appelez-nous -
1 69471-1 Liner, Frz. Door 11 Appelez-nous -
2 70025-7 Gasket, Door 11 Appelez-nous -
3 69999-3 Retainer, Gasket (side) 11 Appelez-nous -
4 69999-6 Retainer,gasket(top/bot)----na 11 Appelez-nous -
5 67718-28 Trim, Door Shelf 11 Appelez-nous -
6 67208-3 Endcap, Shelf Trim 11 Special Order $ 13.60

7 67718-31 Trim, Door Shelf 11 Appelez-nous -
8 67213-2 Endcap, Shelf Trim (wht) 11 Special Order $ 12.64

9 67718-35 Trim, Door Shelf 11 Appelez-nous -
10 WP65245-1 Retainer, Shelf Trim   (Replaces: 65245-1) 11 Special Order $ 9.39

11 67195-8 Organizer, Shelf 11 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

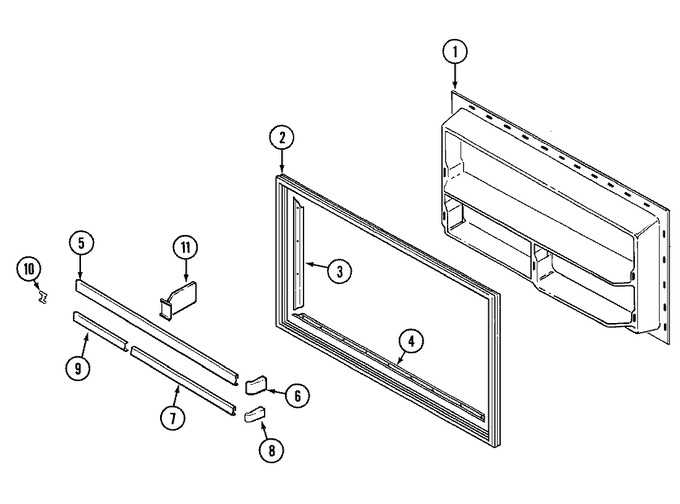

Diagram for RTW2200DAE
