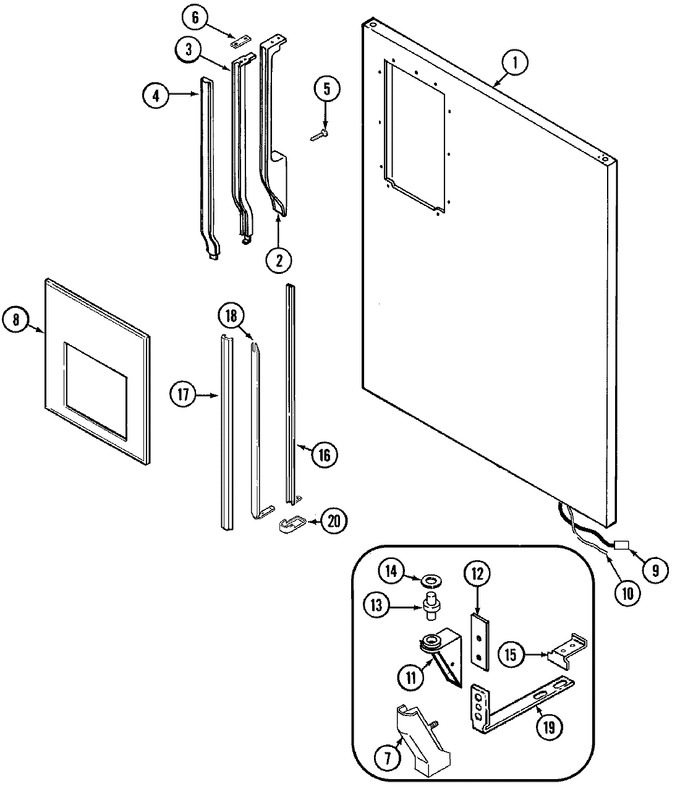

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72342-9-WW		Panel, F.f. Door (wht)	11	Appelez-nous	-
2	65275-57		Screw	11	Appelez-nous	-
2	W10856122		Screw   (Replaces: 61001287)	11			$ 6.98
2	67923-1		Handle, Door	11	Appelez-nous	-
3	67921-1		Frame, F.f. Handle	11	Appelez-nous	-
4	67925-5		Insert, Handle (wht)	11	Appelez-nous	-
5	65275-44		Screw	11	Appelez-nous	-
6	67934-1		Shim, Handle	11	Appelez-nous	-
7	61001609		Cover, Hinge (blk)	11	Appelez-nous	-
7	65275-47		Screw, Hinge Cover (black)	11	Appelez-nous	-
8	414004-35		Screw	11	Appelez-nous	-
8	61001863		Escutcheon (w/tape) (wht)	11	Appelez-nous	-
9	69862-3		Wire Harness,main To Door	11	Appelez-nous	-
9	69803-1		Wire Harness, Door	11	Appelez-nous	-
10	WPW10426709		Tubing, Door   (Replaces: 67187-8)	11			$ 126.83
11	69516-1		Hinge, Lower (blk)	11	Appelez-nous	-
11	65275-51		Screw, Lower Hinge	11	Appelez-nous	-
12	69510-1		Shim, Lower Hinge	11	Appelez-nous	-
13	70060-1		Pin, Hinge	11	Appelez-nous	-
14	67483-3		Washer, Door Spacer	11		Immediately	$ 45.86
15	65275-48		Screw	11	Appelez-nous	-
15	69256-2		Stop, Door	11	Appelez-nous	-
16	67927-5		Shim, Trim Lock (f.f.)	11	Appelez-nous	-
16	65275-26		Screw (no.12 X 5/8``)	11	Appelez-nous	-
17	67932-11		Trim, F.f. Handle Ext. (wht)	11	Appelez-nous	-
18	67933-2		Support, Shim	11	Appelez-nous	-
19	65275-69		Screw	11	Appelez-nous	-
19	414012-1		Screw	11	Appelez-nous	-
19	69511-1		Tapping Plate, Lower Hinge	11	Appelez-nous	-
20	67930-1		End Cap, F.f. Handle	11	Appelez-nous	-
20	65275-57		Screw	11	Appelez-nous	-
NI	69540-1		Insulation, Ice Door	11	Appelez-nous	-
