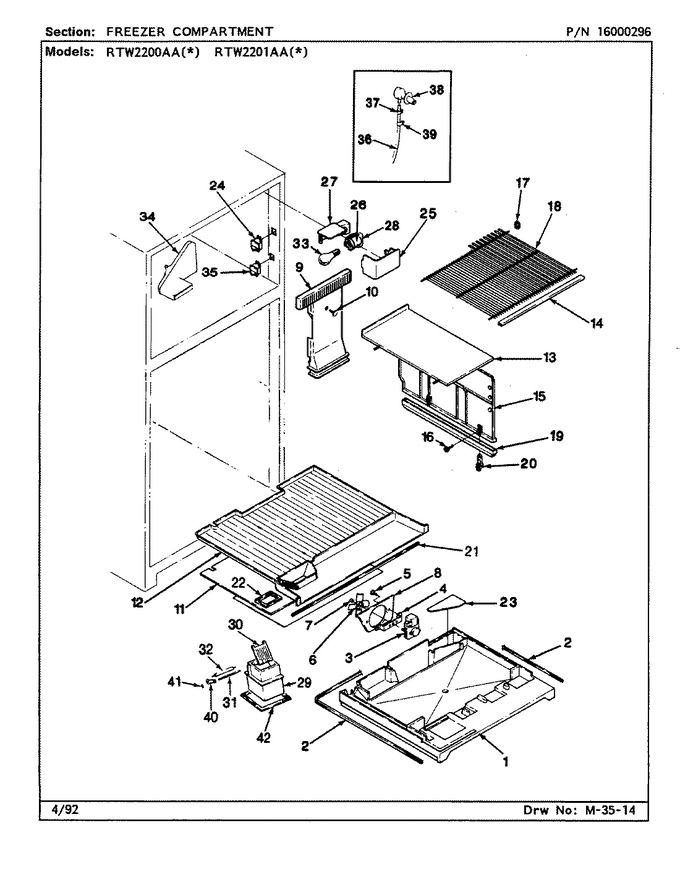

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67521-4 | Tray, Mullion Divider |
|
- | |||||
| 2 | 67730-1 | Seal, Front Corner |
|
- | |||||
| 2 | 68866-4 | Foam Seal 84`` |
|
- | |||||
| 3 | WP61004888 | Motor, Evaporator Fan (Replaces: 54482-10) |
|
Immediately | $ 104.99 | ||||
| 3 | 406062-1 | Screw |
|
- | |||||
| 4 | 64856-1 | Bracket, Fan Motor |
|
- | |||||
| 5 | 400015-12 | Screw |
|
- | |||||
| 6 | 64359-1 | Blade, Evaporator Fan |
|
- | |||||
| 7 | 420092-900 | Washer, Spring |
|
- | |||||
| 8 | 60608-2 | Orifice, Fan Blade |
|
- | |||||
| 9 | 67115-4 | Tunnel Freezer |
|
- | |||||
| 9 | 66325-29 | Seal, Tunnel |
|
- | |||||
| 10 | W11233072 | Screw (Replaces: 400015-31) |
|
Immediately | $ 12.62 | ||||
| 11 | 67905-5 | Cover, Evaporator |
|
- | |||||
| 12 | 67135-1 | Bottom, Frz. |
|
- | |||||
| 13 | 67142-2 | Shelf, Frz. |
|
- | |||||
| 13 | 60313-1 | Cup, Shelf |
|
- | |||||
| 14 | 67176-4 | Trim Frz Shelf |
|
- | |||||
| 15 | 67419-3 | Divider, Shelf |
|
- | |||||
| 16 | 406008-1 | Screw |
|
- | |||||
| 17 | 65570-1 | Freezer Shelf Cup |
|
- | |||||
| 18 | 67696-3 | Shelf, Frz. (wire) |
|
- | |||||
| 19 | 67648-1 | Support, Divider |
|
- | |||||
| 20 | 67657-3 | Guide, Divider |
|
- | |||||
| 21 | 68946-3 | Seal |
|
- | |||||
| 22 | 66325-12 | Seal, Foam Try |
|
- | |||||
| 23 | 66480-6 | Cover, Plenum |
|
- | |||||
| 24 | W11384469 | Switch, Light (Replaces: 66987-1) |
|
Immediately | $ 33.51 | ||||
| 25 | 67240-1 | Shield, Light |
|
- | |||||
| 26 | 67241-1 | Base Lamp Holder |
|
- | |||||
| 27 | 67361-1 | Deflector, Light |
|
- | |||||
| 28 | 400017-103 | Screw |
|
- | |||||
| 28 | 67368-1 | Holder, Lamp |
|
- | |||||
| 29 | 67224-1 | Tunnel Ice |
|
- | |||||
| 30 | 67647-1 | Door, Ice Tunnel |
|
- | |||||
| 31 | 67289-2 | Shaft Ice Door |
|
- | |||||
| 32 | 67282-1 | E Ring |
|
- | |||||
| 32 | 67174-1 | Weight Damper Door |
|
- | |||||
| 33 | 40A15 | Bulb, Light (40 Watt) (Replaces: 31956) |
|
Immediately | $ 1.98 | ||||
| 34 | W11772394 | Screw (Replaces: 400021-1) |
|
Immediately | $ 10.94 | ||||
| 34 | 67061-3 | Duct, Air |
|
- | |||||
| 35 | 68058-1 | Switch, Interlock |
|
- | |||||
| 36 | WPB5705307 | Tube, Valve (Replaces: 67579-1) |
|
$ 11.19 | |||||
| 37 | WPM0114003 | Clamp, Spring (Replaces: 60333-4) |
|
$ 9.95 | |||||
| 38 | 68307-1 | Grommet, Water Entry |
|
- | |||||
| 39 | WP489069 | Screw (Replaces: 65275-50) |
|
Immediately | $ 7.07 | ||||
| 39 | W10833902 | Clamp, Tubing (Replaces: 53516-8) |
|
$ 9.89 | |||||
| 40 | 67184-1 | Arm Damper Door |
|
- | |||||
| 41 | 431015-511 | Nut, Push On |
|
- | |||||
| 42 | 66325-27 | Seal, Ice Tunnel (lower) |
|
- |
