SELECT A DIAGRAM

01 - Freezer Compartment


02 - Ice & Water Dispenser


03 - Ice Maker & Bin


04 - Inner Door


05 - Outer Door


06 - Shelves & Accessories

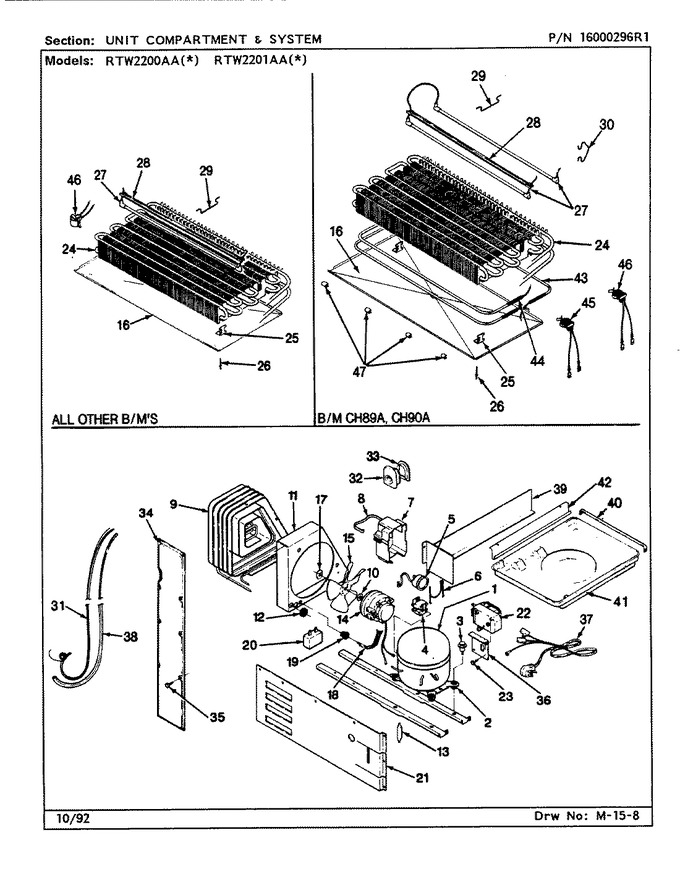

07 - Unit Compartment & Systems (ch89a & 90a)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10439652		Compressor   (Replaces: RA1016)				$ 379.03
1	69062-1		Wire Harness, Compressor		Appelez-nous	-
2	17245-4		Grommet, Compressor		Appelez-nous	-
3	65275-9		Screw, Compressor Mounting		Appelez-nous	-
4	2154436		Relay, Start   (Replaces: 66588-1)				$ 121.45
5	63294-10		Overload		Appelez-nous	-
6	65887-1		Clip, Overload		Appelez-nous	-
7	66589-2		Cover, Terminal		Appelez-nous	-
8	65886-1		Clip, Terminal Cover		Appelez-nous	-
9	414001-1		Screw		Appelez-nous	-
9	60408-2		U-nut, Condenser		Appelez-nous	-
9	RA43871-1		Condenser		Appelez-nous	-
10	19913-4		Washer		Appelez-nous	-
11	66228-1		Shroud, Condenser		Appelez-nous	-
12	53351-1		Grommet, Condenser Tubing		Appelez-nous	-
13	WPW10143759		Drier   (Replaces: 13900)			Immediately	$ 27.70
14	65275-33		Screw		Appelez-nous	-
14	833697		Motor, Condenser Fan   (Replaces: 67560-1)			Immediately	$ 79.34
15	WP12587601		Blade, Condenser Fan   (Replaces: 60683-1)				$ 114.00
16	60101-9		Tray, Drip		Appelez-nous	-
17	WP486692		Clip   (Replaces: 19914-0)				$ 7.04
18	66225-1		Bracket, Fan Motor		Appelez-nous	-
19	56933-1		Grommet, Bracket		Appelez-nous	-
20	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
20	WPW10662129		Capacitor, Run   (Replaces: 65889-2)			Immediately	$ 52.97
21	69138-3		Cover, Unit Compartment		Appelez-nous	-
21	WP488729		Screw   (Replaces: 9986-45)			Immediately	$ 7.01
22	67864-1		Wire Harness Timer		Appelez-nous	-
22	67863-1		Wire Harness Timer		Appelez-nous	-
22	WP68233-2		Timer, Defrost   (Replaces: 66556-8)				$ 179.56
23	405007-1		Screw		Appelez-nous	-
24	RA43620-12		Evaporator		Appelez-nous	-
25	60108-1		Bracket, Coil To Tray		Appelez-nous	-
26	26397-3		Rivet, Reflector		Appelez-nous	-
27	68917-3		Heater, Defrost		Appelez-nous	-
28	69021-3		Shield, Heater		Appelez-nous	-
29	60263-1		Clip, Defrost Heater		Appelez-nous	-
30	69020-1		Clip		Appelez-nous	-
31	WP2205813		Wire Tie   (Replaces: 66223-1)				$ 6.95
31	RA43645-14		Heat Exchanger		Appelez-nous	-
32	60068-1		Grommet, Tube Entry		Appelez-nous	-
33	60069-1		Retainer, Entry Grommet		Appelez-nous	-
34	60110-2		Cover, Wire Harness		Appelez-nous	-
34	69157-1		Wire Harness, Main		Appelez-nous	-
35	WP489069		Screw   (Replaces: 65275-50)			Immediately	$ 7.07
36	67392-2		Bracket, Defrost Timer		Appelez-nous	-
37	52890-3		Cord, Power		Appelez-nous	-
38	65398-1		Cover, Heat Exchanger		Appelez-nous	-
39	66493-3		Baffle		Appelez-nous	-
39	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
40	67596-1		Support		Appelez-nous	-
41	68236-2		Pan, Drain		Appelez-nous	-
42	60555-2		Rail, Drain Pan (lt)		Appelez-nous	-
42	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
42	60555-1		Rail, Drain Pan (rt)		Appelez-nous	-
43	67880-10		Conduction, Heater		Appelez-nous	-
44	68935-1		Clip		Appelez-nous	-
44	67887-3		Heater, Evap Conductor		Appelez-nous	-
45	52085-32		Thermostat, Defrost		Appelez-nous	-
46	52085-30		Thermostat, Defrost		Appelez-nous	-
47	67884-1		Clip		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
