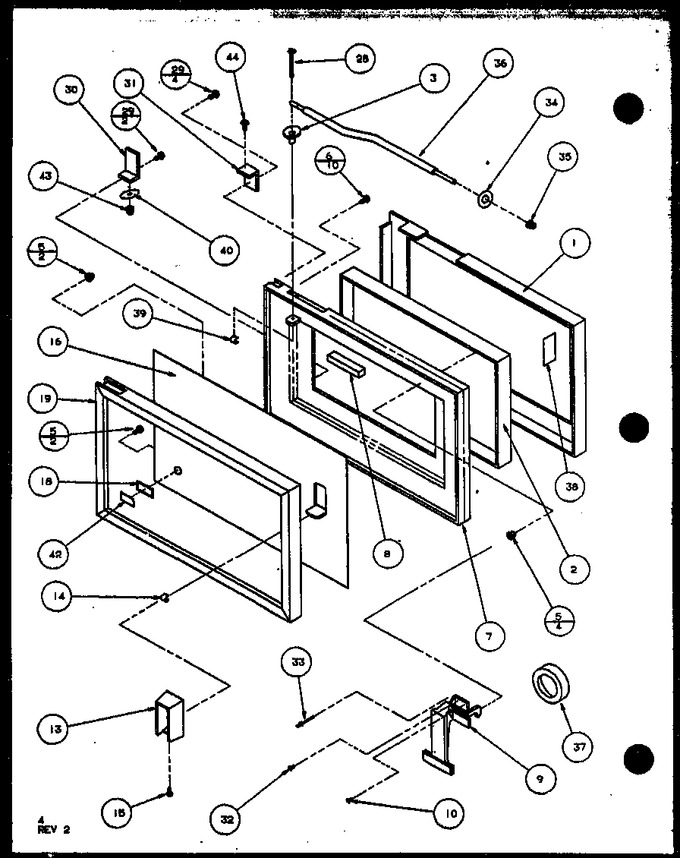

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7670501		Gasket, Door		Appelez-nous	-
2	D7143802		Inner Door Kit		Appelez-nous	-
3	A3185001		Bushing-door Arm		Appelez-nous	-
5	M0288801		Nut K		Appelez-nous	-
6	M0253418		Screw		Appelez-nous	-
7	D7132503		Weld, Inner Door Ring		Appelez-nous	-
8	A4591128		Gasket		Appelez-nous	-
9	D7178504		Door Latch Assembly		Appelez-nous	-
10	WPW10068250		Screw   (Replaces: M0234029)				$ 3.66
13	B5671901		Bezel-door Handle		Appelez-nous	-
14	M0288102		Speed Nut		Appelez-nous	-
15	M0230017		Screw,tc		Appelez-nous	-
16	D7578101		Panel, Outer Door		Appelez-nous	-
18	C3668803		Escutcheon		Appelez-nous	-
19	D7667702		Ring, Outer Door		Appelez-nous	-
28	B8372701		Pin Mtg		Appelez-nous	-
29	M0253230		Screw		Appelez-nous	-
30	C8937805		Assy, Door Hinge		Appelez-nous	-
31	C8937804		Assy, Door Hinge		Appelez-nous	-
32	W11227370		Screw   (Replaces: M0234030)			Immediately	$ 12.78
33	B5642906		Rivet, Pop (wht)		Appelez-nous	-
34	M0270501		Washer		Appelez-nous	-
35	WP488130		Nut   (Replaces: M0282007)				$ 6.27
36	B5748702		Arm, Dr Stop K		Appelez-nous	-
37	M0275154		Tape Per Roll		Appelez-nous	-
38	M0275501		Sealer		Appelez-nous	-
39	M0118905		Clip Push On		Appelez-nous	-
40	A3168101		See Svc Ltr Cr-163d		Appelez-nous	-
42	C8904610		Insert Medallion		Appelez-nous	-
43	M0274032		Washer Non-metal		Appelez-nous	-
44	M0274046		Washer		Appelez-nous	-
