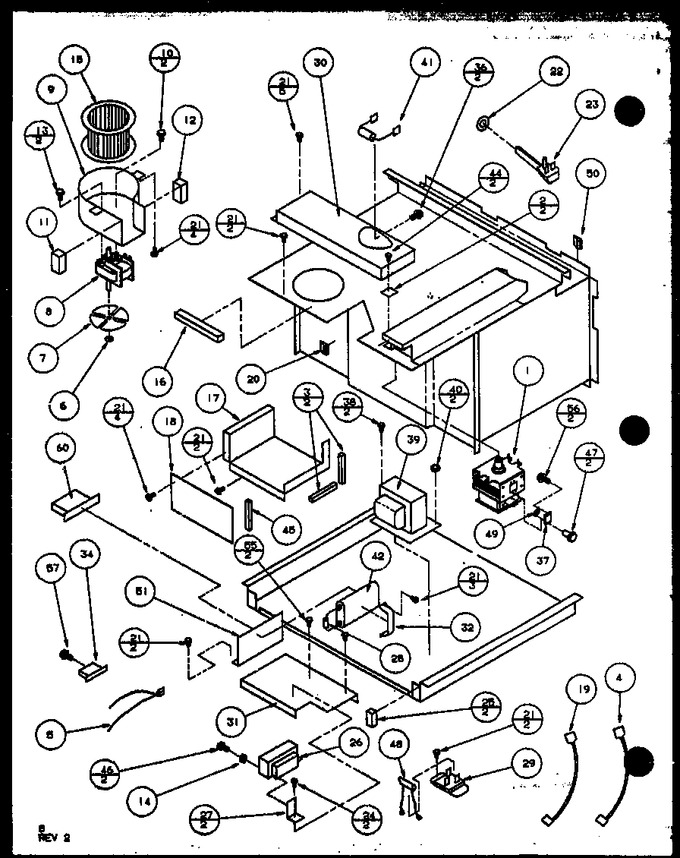

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8798603		Magnetron		Appelez-nous	-
2	B5774402		Brkt-mag Tube		Appelez-nous	-
3	B8343706		Gasket		Appelez-nous	-
4	D7292672		Jumper Wire		Appelez-nous	-
4	D7292694		Jumper Wire		Appelez-nous	-
5	D7292681		Jumper Wire		Appelez-nous	-
6	M0118901		Clip		Appelez-nous	-
7	B5706702		Fan Blade-blower		Appelez-nous	-
8	C8811802		Kit, Motor		Appelez-nous	-
9	C8710708		Blower Scroll Weld		Appelez-nous	-
10	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
11	A3030303		Gasket (per Foot)		Appelez-nous	-
12	A3030309		Gasket (per Foot)		Appelez-nous	-
13	WP3400094		Screw   (Replaces: M0258055)				$ 7.14
14	M0272803		Lock Washer		Appelez-nous	-
15	C3670805		Blower Wheel		Appelez-nous	-
16	A3030302		Gasket		Appelez-nous	-
17	C8934201		Plenum Weld		Appelez-nous	-
18	A3230302		Cover-plenum		Appelez-nous	-
19	D7365131		Jumper Wire		Appelez-nous	-
20	WPM0104106		Clip,cord   (Replaces: M0104101)				$ 7.00
21	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
22	M0370007		Strain Relief		Appelez-nous	-
23	B5731701		Kit,cord		Appelez-nous	-
24	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
25	B5107619		Gasket		Appelez-nous	-
26	C8798803		Transformer		Appelez-nous	-
27	B5779401		Brkt-transformer		Appelez-nous	-
28	WP13091701		Rectifier   (Replaces: B8383102)				$ 31.71
29	D7681501		Triac				$ 44.05
30	D7224903		Cover-air Duct		Appelez-nous	-
31	D7695802		Chassis, Power Supply		Appelez-nous	-
32	A4055405		Strap, Capacitor		Appelez-nous	-
34	B5677203		Terminal Block		Appelez-nous	-
36	M0325401		Bushing,terminal		Appelez-nous	-
37	B8373501		Plate Tc Mtg		Appelez-nous	-
38	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 7.05
39	D7374903		Transformer		Appelez-nous	-
40	WP487939		Nut   (Replaces: M0282015)				$ 6.95
41	B8353203		Thermal Fuse W/terminals		Appelez-nous	-
42	D8547917		Capacitor		Appelez-nous	-
44	M0216531		Screw		Appelez-nous	-
45	A3030303		Gasket (per Foot)		Appelez-nous	-
46	M0218136		Screw		Appelez-nous	-
47	M0229916		Screw T.c		Appelez-nous	-
48	B8329403		Snubber Assembly		Appelez-nous	-
49	B5684109		Protector, Thermal		Appelez-nous	-
50	M0118801		Clip		Appelez-nous	-
51	C8945901		Plate, Relay Mtg		Appelez-nous	-
55	M0258015		Screw		Appelez-nous	-
56	M0232012		Screw		Appelez-nous	-
57	M0234117		Screw		Appelez-nous	-
60	C8901502		Transformer, Auto		Appelez-nous	-
