SELECT A DIAGRAM

01 - Cover

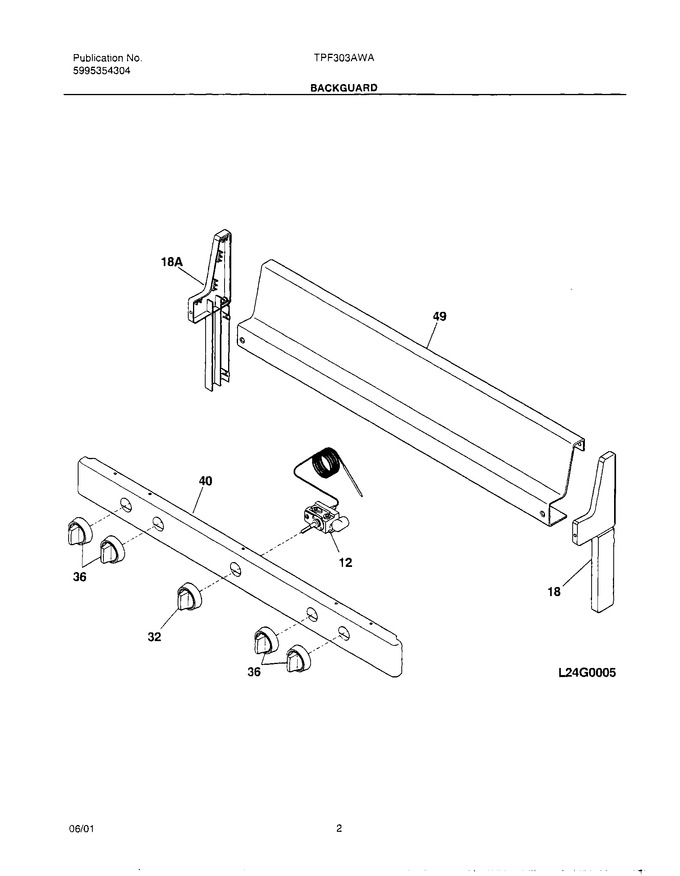

03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	5303935014		Thermostat,oven ,w/screws		Appelez-nous	-
18	3202802		End Cap,black ,rh		Appelez-nous	-
18	3202801		End Cap,black ,lh		Appelez-nous	-
32	316102304		Knob Thermostat,black				$ 71.47
36	316009008		Knob-top Valve, (4)				$ 54.86
40	316201830		Panel-manifold,black		Appelez-nous	-
49	316247505		Panel-backguard,white		Appelez-nous	-
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
NI	5303280590		Screw,thermostat ,(2)		Appelez-nous	-
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
