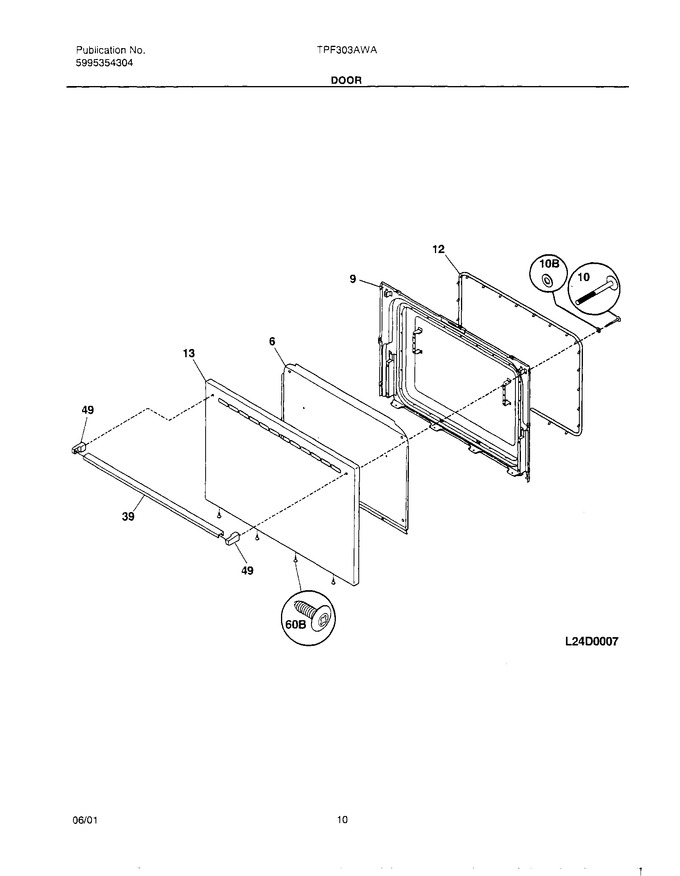

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	316222705		Shield-wool,oven Door		Appelez-nous	-
9	316230603		Liner-door,oven		Appelez-nous	-
10	316001009		Screw-handle,waf Hd Sq ,10-24 X 1.88 ,(2)				$ 15.17
10	316008401		Washer,3/4 Od X 1/4 Id ,steel				$ 11.34
12	316239700		Seal,oven Door			Immediately	$ 152.43
13	316202603		Panel,oven Door ,white		Appelez-nous	-
39	316020204		Handle-door, Black, Oven		Appelez-nous	-
49	316137003		End Cap,handle ,black ,(2)				$ 48.54
60	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 13.46
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312				$ 6.62

    View Diagram in Separate Window       Print Part List
