SELECT A DIAGRAM

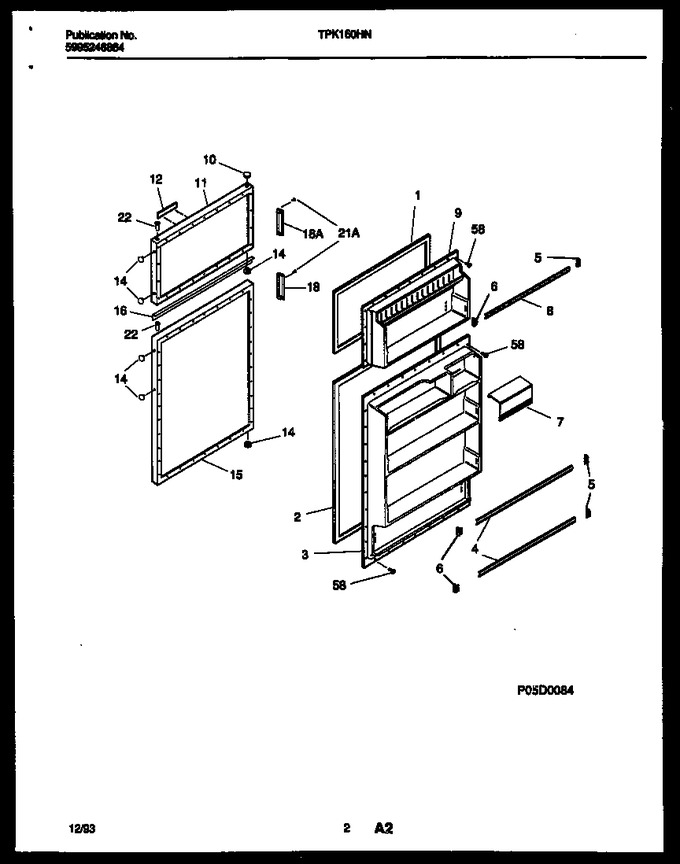

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303001399		Gasket-frzr Door, Magnetic, Beige		Appelez-nous	-
2	218730603		Gasket-refr Door, Magnetic, Beige   (Replaces: 5303001517)				$ 62.07
3	5318359102		Panel-inner Door, Refr		Appelez-nous	-
4	5303274178		Rack-door, (2)		Appelez-nous	-
5	5317828701		Support-door Rack, Rh				$ 8.18
6	5317828401		Support-door Rack, Lh				$ 11.48
7	5303273191		Door-dairy		Appelez-nous	-
8	5303274179		Rack-door		Appelez-nous	-
9	5318358902		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	5303916819		Panel-frzr Door, White		Appelez-nous	-
12	5303273164		Nameplate Assy		Appelez-nous	-
14	240494001		Plug-button, White, Handle/dr Stop   (Replaces: 5308000090)			Immediately	$ 18.20
15	5303916821		Panel-refr Door, White		Appelez-nous	-
16	5318755101		Trim-door, With Tape		Appelez-nous	-
18	5303274256		Handle-door, Chrome/black		Appelez-nous	-
22	5308012007		Bearing-hinge		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
*38149	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
18A	5303274255		Handle-door, Chrome/black		Appelez-nous	-
21A	5308011745		Screw				$ 10.38

    View Diagram in Separate Window       Print Part List
