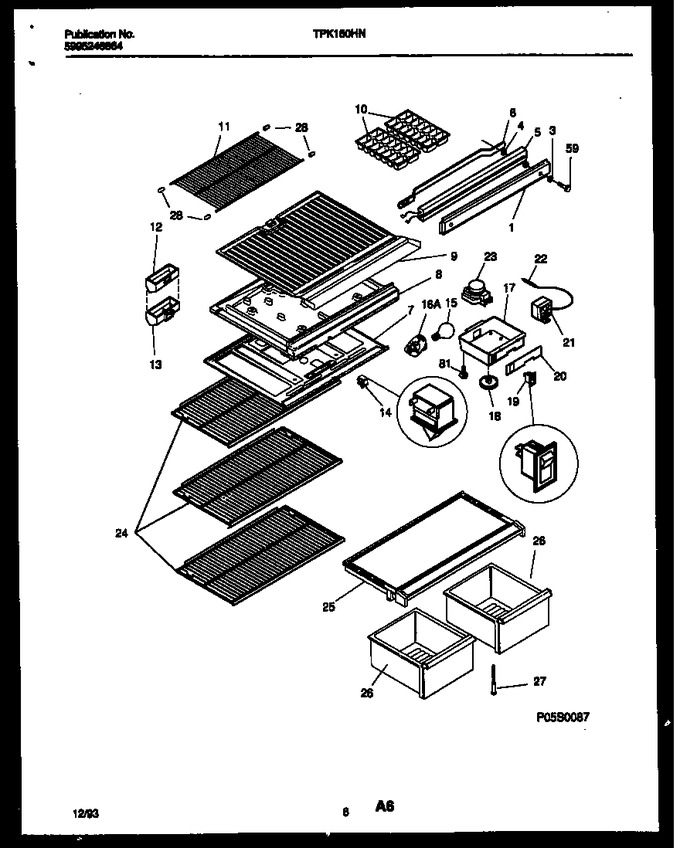

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303200465 | Mullion, White |
|
- | |||||
| 3 | 5303206754 | Washer No. 10 Flat, 7/32 X 7/16 Od, Steel |
|
- | |||||
| 4 | 5303200464 | Spacer-mullion Mtg, Steel |
|
- | |||||
| 5 | 5308017408 | Heater-mullion |
|
- | |||||
| 6 | 5308003604 | Strap, Mullion Mtg |
|
- | |||||
| 7 | 5303016378 | Top Panel-refr, W/ Snap Bushing |
|
- | |||||
| 8 | 5308009750 | Divider, Styrofoam |
|
- | |||||
| 9 | 5303001537 | Bottom Panel-frzr |
|
- | |||||
| 10 | 5303001324 | Tray-ice, Plastic, (2) |
|
- | |||||
| 11 | 5303283107 | Shelf-freezer |
|
$ 155.82 | |||||
| 12 | 5308000071 | Deflector-air |
|
- | |||||
| 13 | 5303001546 | Cover - Air Deflector |
|
- | |||||
| 14 | 5309918806 | Switch-light/lamp |
|
Immediately | $ 21.97 | ||||
| 15 | 5303001179 | Light Bulb/lamp,40 W |
|
- | |||||
| 17 | 5303015152 | Box-control |
|
- | |||||
| 18 | 5308010011 | Knob-temp Control |
|
- | |||||
| 19 | 5303001670 | Switch-energy Saver |
|
- | |||||
| 20 | 5303273206 | Label-control Box |
|
- | |||||
| 21 | 5303200810 | Control-temperature |
|
$ 126.87 | |||||
| 22 | 5303916855 | Sleeve-plastic Tube |
|
$ 60.96 | |||||
| 23 | 215846602 | Timer (Replaces: 215267800) |
|
Immediately | $ 28.20 | ||||
| 24 | 5303291236 | Shelf-sliding, Wire, Refr Section |
|
- | |||||
| 25 | 5349001603 | Cover-crisper Pan |
|
- | |||||
| 26 | 5303274134 | Pan-crisper, (2) |
|
- | |||||
| 27 | 5303205987 | Support-crisper Cvr, Adjustable |
|
$ 48.41 | |||||
| 28 | 3201150 | Cap-protector |
|
$ 4.57 | |||||
| 59 | 215115900 | Screw-hinge/mullion, Pan Head, 10-24(23) X 7/8 |
|
- | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 16A | 5308000129 | Socket-light/lamp |
|
$ 62.16 | |||||
| 17A | 5308016567 | Nut-anchor (non-illustrated) |
|
- | |||||
| 21A | 5303001260 | Screw |
|
$ 6.73 | |||||
| 23A | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 24A | 5303283297 | Stop Clip-shelf (non-illustrated) |
|
- | |||||
| 7A | 5303001380 | Screw |
|
- | |||||
| 7B | 5303212518 | Bushing, Snap-in, Plastic (non-illustrated) |
|
- | |||||
| 8A | 3001383 | Harness-wiring, Control/divider,(non-illustrated) |
|
- |
