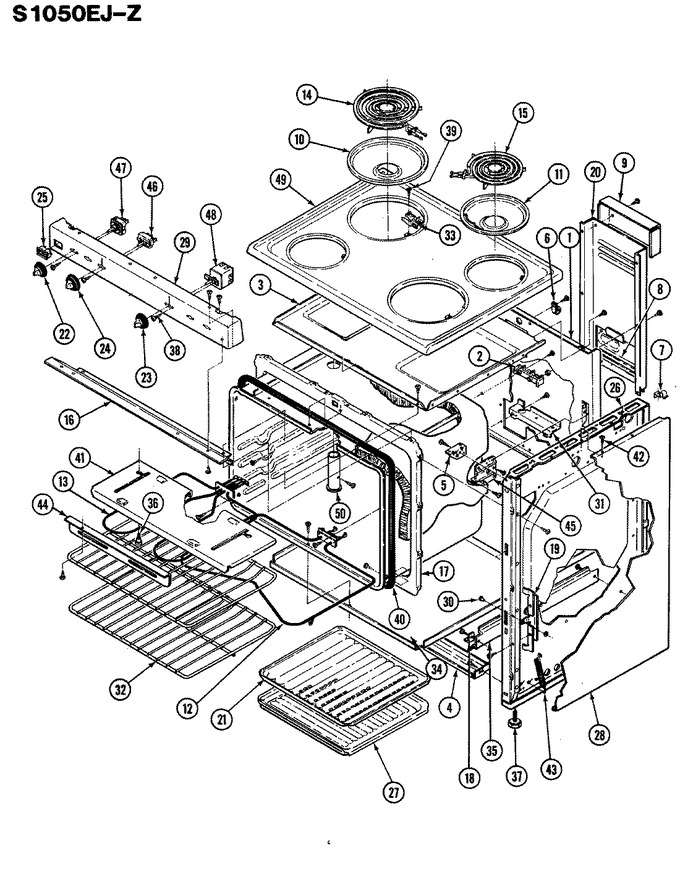

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F108-80 | Back, Main | 1 |
|
- | ||||
| 2 | WPW10245259 | Block, Terminal (Replaces: 7401P002-60) | 1 |
|
Immediately | $ 31.65 | |||
| 3 | 3802F010-80 | Brace, Back-right | 1 |
|
- | ||||
| 3 | 3802F008-80 | Brace, Back-left | 1 |
|
- | ||||
| 3 | 4011F128-23 | Bottom, Burner Box | 1 |
|
- | ||||
| 4 | 3802F029-80 | Brace, Main Top | 1 |
|
- | ||||
| 4 | 3802F076-51 | Brace, Inner Side | 1 |
|
- | ||||
| 5 | 3818F022-51 | Channel, Wire Side | 1 |
|
- | ||||
| 5 | 3801F047-34 | Bracket,control Panel (r) | 1 |
|
- | ||||
| 5 | 3801F049-34 | Bracket,control Panel (l) | 1 |
|
- | ||||
| 5 | 3801F198-51 | Bracket, Tie-down | 1 |
|
- | ||||
| 5 | 3818F021-51 | Channel, Wire Rear | 1 |
|
- | ||||
| 6 | 7111P002-60 | Clamp, Wire 3/4 | 1 |
|
- | ||||
| 6 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 1 |
|
Immediately | $ 11.07 | |||
| 6 | 7112P019-60 | Clip, Hinge Pin | 1 |
|
- | ||||
| 7 | 7112P030-60 | Clip, Top Retainer | 1 |
|
- | ||||
| 8 | 4005F016-80 | Cover, Back Burner Box | 1 |
|
- | ||||
| 8 | 4005F302-51 | Cover Access | 1 |
|
- | ||||
| 9 | 4005F082-80 | Cover, Housing | 1 |
|
- | ||||
| 9 | 4005F005-45 | Cover | 1 |
|
- | ||||
| 10 | WPW10196405 | Bowl, Drip (8``) (Replaces: 7725P014-60) | 1 |
|
Immediately | $ 15.56 | |||
| 11 | WPW10196406 | Bowl, Drip (6``)(w/hole-chr) (Replaces: 7725P015-60) | 1 |
|
Immediately | $ 12.05 | |||
| 12 | WPY04000041 | Element,bake (Replaces: 7406P010-60) | 1 |
|
$ 133.20 | ||||
| 13 | WPY04000048 | Element,broil (Replaces: 7406P003-60) | 1 |
|
$ 160.58 | ||||
| 14 | WPY04000035 | Element, Giant Surface (Replaces: 7406P014-60) | 1 |
|
$ 160.60 | ||||
| 15 | WPY04000036 | Element, Std. Surface (Replaces: 7406P017-60) | 1 |
|
$ 88.70 | ||||
| 16 | 4012F019-80 | Front, Burner Box | 1 |
|
- | ||||
| 17 | 2201F060-23 | Front, Oven Upper | 1 |
|
- | ||||
| 18 | 8016P005-60 | Glide, Front | 1 |
|
- | ||||
| 19 | 3418A029-34 | Hinge Assy. (lt) | 1 |
|
$ 48.47 | ||||
| 19 | 3418A030-34 | Hinge Assy. (rt) | 1 |
|
- | ||||
| 20 | 4001F051-51 | Housing,main Wire | 1 |
|
- | ||||
| 21 | 3413F002-23 | Insert, Broil Pan | 1 |
|
- | ||||
| 22 | 7711P219-60 | Knob, Surface Switch | 1 |
|
- | ||||
| 23 | WP7711P159-60 | Knob, Thermostat (Replaces: 7711P218-60) | 1 |
|
$ 19.28 | ||||
| 24 | WP7711P220-60 | Knob, Selector Switch (Replaces: 7711P220-60) | 1 |
|
$ 25.72 | ||||
| 25 | 7407P015-60 | Light, Indicator | 1 |
|
- | ||||
| 26 | 04000019 | Lining, Inner Side | 1 |
|
- | ||||
| 27 | 4396923 | Pan, Broil (Replaces: 3401F004-23) | 1 |
|
Immediately | $ 52.04 | |||
| 28 | 2618F052-70 | Panel, Side Black | 1 |
|
- | ||||
| 29 | 2614F007-90 | Panel, Upper Front | 1 |
|
- | ||||
| 30 | 7113P002-60 | Pin, Hinge | 1 |
|
$ 9.05 | ||||
| 31 | 7718P003-60 | Plug | 1 |
|
- | ||||
| 31 | 7719P008-60 | Plate, Name | 1 |
|
- | ||||
| 31 | 3605F156-51 | Plate,conduit | 1 |
|
- | ||||
| 31 | 3605F146-51 | Plate, Conduit Reinforcement | 1 |
|
$ 6.06 | ||||
| 32 | 7801P030-60 | Rack, Oven | 1 |
|
$ 57.14 | ||||
| 33 | 12001676 | Kit, Receptacle (Replaces: 1430306K) | 01 |
|
Immediately | $ 28.45 | |||
| 34 | 3804F093-80 | Retainer, Bottom Ins. | 1 |
|
- | ||||
| 35 | 3406F025-51 | Runner,outer | 1 |
|
- | ||||
| 36 | WP7101P126-60 | Screw (Replaces: 7101P057-60) | 1 |
|
Immediately | $ 6.85 | |||
| 36 | 7101P005-60 | Screw | 1 |
|
- | ||||
| 37 | Y7101P25460 | Leg, Leveling | 1 |
|
- | ||||
| 38 | 7101P101-60 | Screw, Thermostat | 1 |
|
- | ||||
| 39 | WP74004005 | Screw (Replaces: 7101P042-60) | 1 |
|
$ 6.95 | ||||
| 40 | 7212P002-60 | Seal, Oven | 1 |
|
- | ||||
| 41 | 3604F067-51 | Shield | 1 |
|
- | ||||
| 41 | 3604F091-34 | Shield, Switch | 1 |
|
- | ||||
| 41 | 3604F092-45 | Shield, Broil | 1 |
|
- | ||||
| 42 | 8010P048-60 | Spacer, Main Top | 1 |
|
- | ||||
| 43 | 3420A033-34 | Stop, Oven Door | 1 |
|
- | ||||
| 43 | WP7803P058-60 | Spring, Ov Dr (Replaces: 7803P055-60) | 1 |
|
$ 16.55 | ||||
| 44 | 3807F176-15 | Support, Broil Element | 1 |
|
- | ||||
| 45 | 3807F205-45 | Support, Oven Rear | 1 |
|
- | ||||
| 46 | 7403P031-60 | Switch, Selector | 1 |
|
- | ||||
| 47 | W11122006 | Switch, Inf. Control (Replaces: 7403P168-60) | 1 |
|
$ 145.12 | ||||
| 48 | 7404P029-60 | Thermostat | 1 |
|
- | ||||
| 49 | 2002W030-30 | Top Assy, Main | 1 |
|
- | ||||
| 50 | 8026P001-60 | Tube | 1 |
|
- |
