SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door
New Model Search:

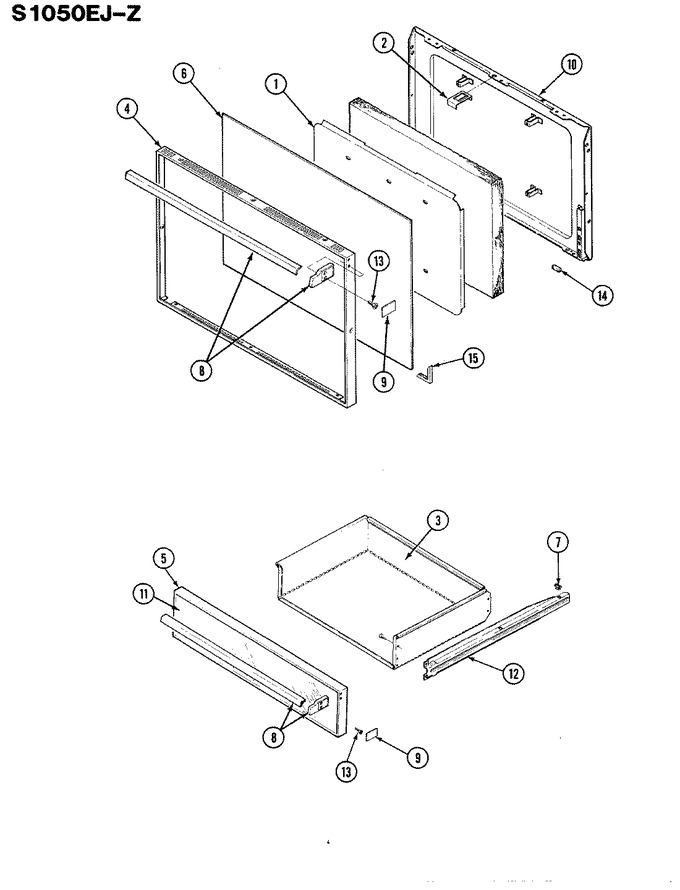

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3801F115-51 | Bracket, Drawer | 1 |
|
- | ||||
| 1 | 3601F026-51 | Baffle | 1 |
|
- | ||||
| 2 | 7112P034-60 | Clip, Door | 1 |
|
- | ||||
| 3 | 3405F008-80 | Drawer, Service | 1 |
|
- | ||||
| 4 | 7706P243-60 | Frame, Door | 1 |
|
- | ||||
| 5 | W10124350 | Not Required Part Or See Note |
|
- | |||||
| 6 | 7902P275-60 | Glass, Door | 1 |
|
- | ||||
| 7 | 8016P004-60 | Glide, Drawer | 1 |
|
- | ||||
| 8 | 7701P047-60 | Handle, Door | 1 |
|
- | ||||
| 9 | 7728P012-60 | Insert, Oven Door Handle | 1 |
|
- | ||||
| 10 | 2402W090-23 | Lining Assy, Ov Dr | 1 |
|
- | ||||
| 11 | 5425A021-70K | Drawer, Service | 1 |
|
- | ||||
| 12 | 3406F020-80 | Runner, Inner | 1 |
|
- | ||||
| 13 | 7101P123-60 | Screw | 1 |
|
- | ||||
| 14 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 1 |
|
$ 11.95 | ||||
| 15 | 8010P045-60 | Spacer, Glass Corner | 1 |
|
- |
