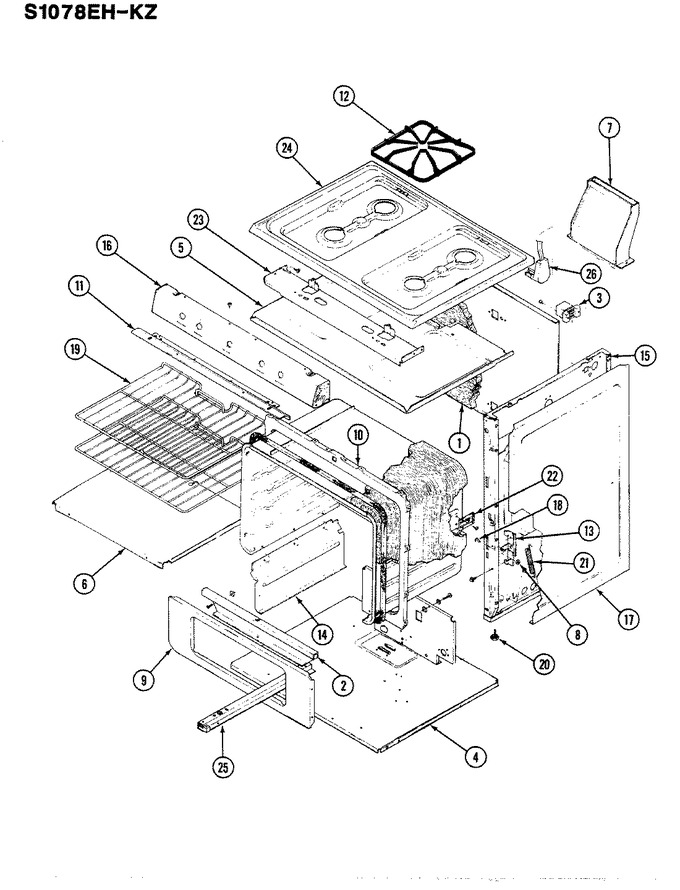

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Control System
04 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F070-20 | Back, Main | 1 |
|
- | ||||
| 2 | 3601W124-23 | Baffle, Oven Frt | 1 |
|
- | ||||
| 3 | 7401P005-60 | Cap, Terminal Block | 1 |
|
- | ||||
| 3 | 7401P015-60 | Block, Terminal | 1 |
|
- | ||||
| 4 | 4011F097-20 | Bottom, Broiler | 1 |
|
- | ||||
| 5 | 4011F095-80 | Bottom, Burner Box | 1 |
|
- | ||||
| 6 | 2205F012-24 | Bottom, Oven | 1 |
|
- | ||||
| 7 | 3801F101-80 | Bracket, Tie Down | 1 |
|
- | ||||
| 7 | 3801F049-34 | Bracket,control Panel (l) | 1 |
|
- | ||||
| 7 | 3801F047-34 | Bracket,control Panel (r) | 1 |
|
- | ||||
| 7 | 3801F021-45 | Bracket | 1 |
|
- | ||||
| 7 | 4006W026-80 | Box, Flue | 1 |
|
- | ||||
| 8 | 7112P030-60 | Clip, Top Retainer | 1 |
|
- | ||||
| 8 | 7112P019-60 | Clip, Hinge Pin | 1 |
|
- | ||||
| 8 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 1 |
|
Immediately | $ 11.07 | |||
| 9 | 2201F034-25 | Front, Frame Oven Lower | 1 |
|
- | ||||
| 10 | 2201F060-23 | Front, Oven Upper | 1 |
|
- | ||||
| 11 | 4012F019-20 | Front, Burner Box | 1 |
|
- | ||||
| 12 | 2003W001-00 | Grate | 1 |
|
- | ||||
| 13 | 3418F030-34 | Hinge, Oven Door (rt) | 1 |
|
- | ||||
| 13 | WP7711P135-60 | Knob, Valve (Replaces: 7711P135-60) | 1 |
|
$ 25.06 | ||||
| 13 | WP7731P018-60 | Knob, Thermostat (Replaces: 7711P312-60) | 1 |
|
$ 25.14 | ||||
| 13 | 4396923 | Insert (Replaces: 3413F002-11) | 1 |
|
Immediately | $ 52.04 | |||
| 13 | 3418F029-34 | Hinge, Oven Door (lt) | 1 |
|
- | ||||
| 14 | 2404F021-23 | Lining, Broiler | 1 |
|
- | ||||
| 15 | 4009W028-80 | Lining Assy, Inner Side | 1 |
|
- | ||||
| 15 | 4396923 | Pan, Broil (Replaces: 3401F004-11) | 1 |
|
Immediately | $ 52.04 | |||
| 16 | 2616F022-90 | Panel, Manifold Blk | 1 |
|
- | ||||
| 17 | 2618F052-71 | Panel, Side (wht) | 1 |
|
- | ||||
| 17 | 2618F052-74 | Panel, Side (alm) | 1 |
|
- | ||||
| 18 | 7113P002-60 | Pin, Hinge | 1 |
|
$ 9.05 | ||||
| 19 | 7801P030-60 | Rack, Oven | 1 |
|
$ 57.14 | ||||
| 20 | 7101P029-60 | Screw, Special | 1 |
|
- | ||||
| 21 | WP7803P058-60 | Spring (Replaces: 7803P002-60) | 1 |
|
$ 16.55 | ||||
| 22 | 3807F205-45 | Support, Oven Rear | 1 |
|
- | ||||
| 23 | 3807F221-80 | Support, Top Burner | 1 |
|
- | ||||
| 24 | 2001F036-30 | Top, Main - C | 1 |
|
- | ||||
| 25 | 3404A001-51 | Track | 1-25 |
|
- | ||||
| 25 | 3404A013-51 | Track, Broiler Dwr Right | 26 |
|
- | ||||
| 25 | 3404A014-51 | Track, Broiler Dwr Left | 26 |
|
- | ||||
| 26 | 1430238 | Anchor Assm | 1 |
|
- | ||||
| 26 | 4002F078-45 | Back, Broiler | 1-36 |
|
- | ||||
| 26 | 4002F124-45 | Back, Broiler | 37 |
|
- | ||||
| 26 | 7402P014-60 | Cord, Power | 1 |
|
- | ||||
| 27 | 8112P033-60 | Manual, Use & Care | 27 |
|
- | ||||
| 27 | 8112P008-60 | Manual, Use & Care | 1-26 |
|
- |
