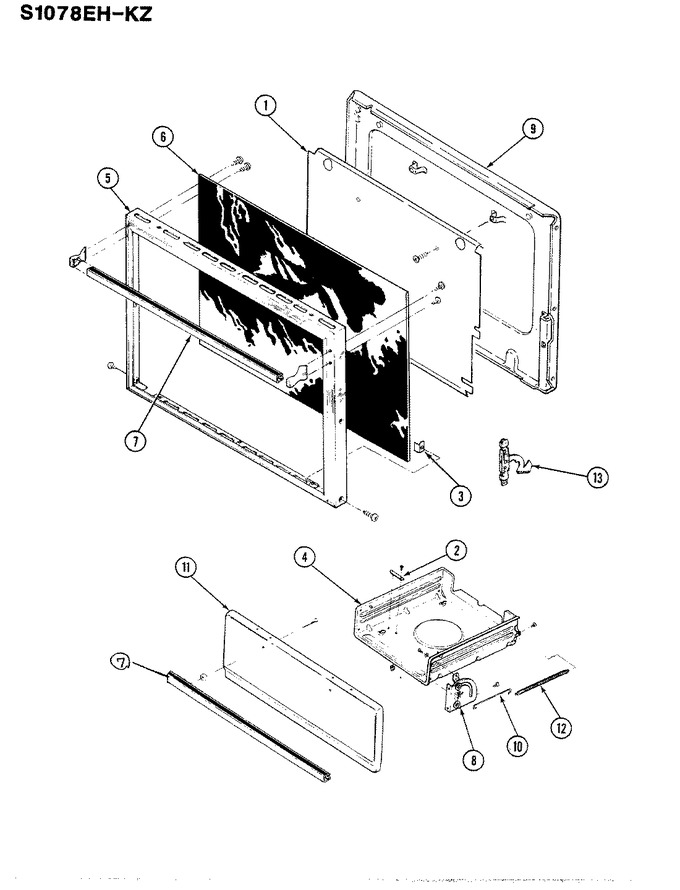

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Control System
04 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F026-51 | Baffle | 1 |
|
- | ||||
| 2 | 8002P001-60 | Catch | 1 |
|
- | ||||
| 3 | 7112P034-60 | Clip, Door | 1 |
|
- | ||||
| 4 | 3407W009-11 | Drawer, Broiler | 1 |
|
- | ||||
| 5 | 7706P178-60 | Frame, Door | 1 |
|
- | ||||
| 6 | 7902P063-60 | Glass, Door Solid | 1 |
|
- | ||||
| 7 | 7701P007-60 | Handle, Door | 1 |
|
- | ||||
| 8 | 3418A062-34 | Hinge, Broiler (rt) | 1 |
|
- | ||||
| 8 | 7728P012-60 | Insert, Oven Door Handle | 1 |
|
- | ||||
| 8 | 2402W091-23 | Lining Assy, Ov Dr | 1 |
|
- | ||||
| 8 | 3418A063-34 | Hinge, Broiler (lt) | 1 |
|
- | ||||
| 8 | 2404F021-23 | Lining, Broiler | 1 |
|
- | ||||
| 10 | 7807P001-60 | Link, Broiler | 1 |
|
- | ||||
| 11 | 8010P045-60 | Spacer, Glass Corner | 1 |
|
- | ||||
| 11 | 8010P002-60 | Spacer, Handle | 1 |
|
- | ||||
| 11 | 7101P123-60 | Screw | 1 |
|
- | ||||
| 11 | 7208P007-60 | Seal, Silastic | 1 |
|
- | ||||
| 11 | 2403F014-70 | Panel, Broiler Drwr | 1 |
|
- | ||||
| 12 | WP7803P058-60 | Spring (Replaces: 7803P002-60) | 1 |
|
$ 16.55 | ||||
| 12 | 7803P014-60 | Spring | 1 |
|
- | ||||
| 13 | 3420A033-34 | Stop, Oven Door | 1 |
|
- |
