SELECT A DIAGRAM
01 - Body
02 - Control System
03 - Door
New Model Search:

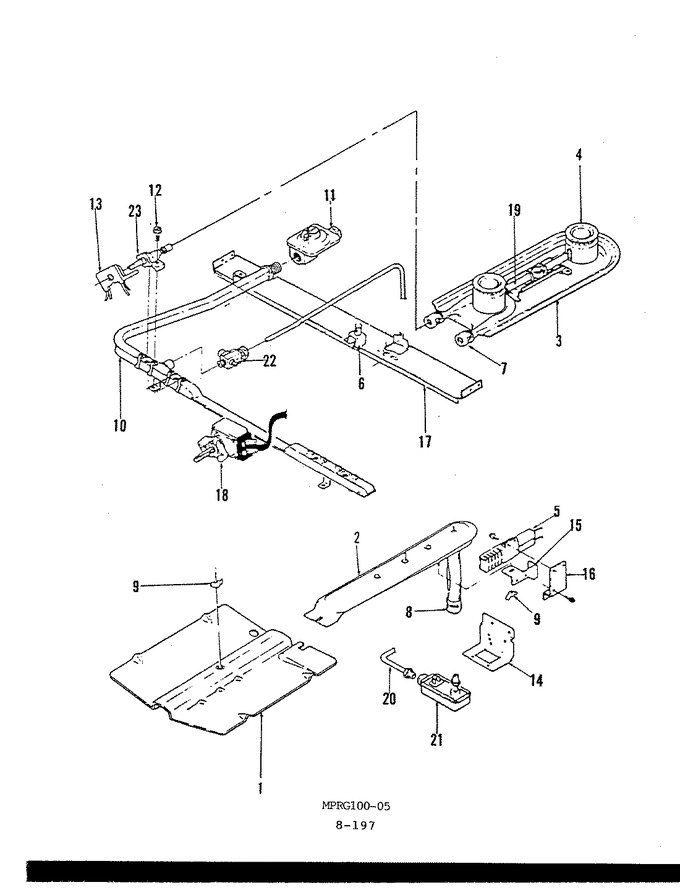

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F099-45 | Baffle, Broil | 15 |
|
- | ||||
| 1 | 0153321 | Baffle | 1 |
|
- | ||||
| 1 | 1867271 | Block | 1 |
|
- | ||||
| 2 | 0298234 | Burner Assy., Oven | 1 |
|
- | ||||
| 2 | 7505P064-60 | Burner, Oven | 15 |
|
- | ||||
| 3 | 300252 | Socket For Pilot Lamp | 1 |
|
- | ||||
| 4 | 1083219 | Cap, Burner | 1 |
|
- | ||||
| 5 | 12400035 | + Ignitor (Replaces: 1482224) | 1 |
|
Immediately | $ 60.44 | |||
| 6 | 1482222 | Ignitor | 1-9 |
|
- | ||||
| 6 | 1482238 | Ignitor | 10 |
|
- | ||||
| 7 | Y0607215 | Mixer, Air | 1 |
|
- | ||||
| 8 | 1555251 | Nut, Loxit (3/8``) | 1 |
|
- | ||||
| 8 | 0607214 | Mixer, Air | 1 |
|
- | ||||
| 8 | 1522106 | Module, Spark | 1 |
|
- | ||||
| 8 | 1522102 | Module, Spark | 1-9 |
|
- | ||||
| 8 | 1555222 | Nut, Loxit (3/16``) | 1 |
|
- | ||||
| 9 | 1555254 | Wing Nut | 1-14 |
|
- | ||||
| 9 | 1555258 | 3/8`` Nut & Ferrule | 1 |
|
- | ||||
| 10 | 7513E044 | Pipe, Manifold | 1 |
|
- | ||||
| 11 | WP74004005 | Therm Mounting Screw (Replaces: 1986330) | 1 |
|
$ 6.95 | ||||
| 11 | 1665247 | Regulator, Pressure | 1 |
|
- | ||||
| 12 | 1986286 | Screw Special | 1 |
|
- | ||||
| 13 | WP7403P190-60 | Switch (Replaces: 1832395) | 1 |
|
$ 118.82 | ||||
| 14 | 0862445 | Support | 1 |
|
- | ||||
| 15 | 0862434 | Support | 1 |
|
- | ||||
| 16 | 0862420 | Support | 1 |
|
- | ||||
| 17 | 3807F210-80 | Support, Top Burner | 22 |
|
- | ||||
| 17 | 0862470 | Support | 1 |
|
- | ||||
| 18 | 1888440 | Thermostat,gas Range | 1 |
|
- | ||||
| 19 | 1930368 | Tube, Flash | 1 |
|
- | ||||
| 20 | Y0936102 | 3/8 X 72 Tubing | 1 |
|
- | ||||
| 21 | 1945270 | Valve, Safety | 1 |
|
- | ||||
| 22 | 1951367 | Valve, Shut Off | 1 |
|
- | ||||
| 23 | 1951372 | Valve, Top Burner | 1 |
|
- |
